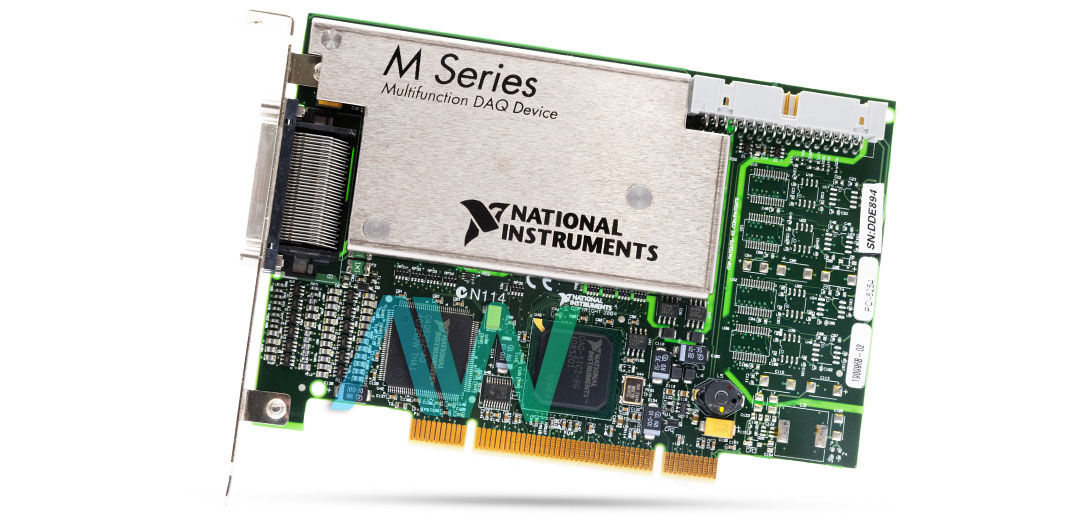

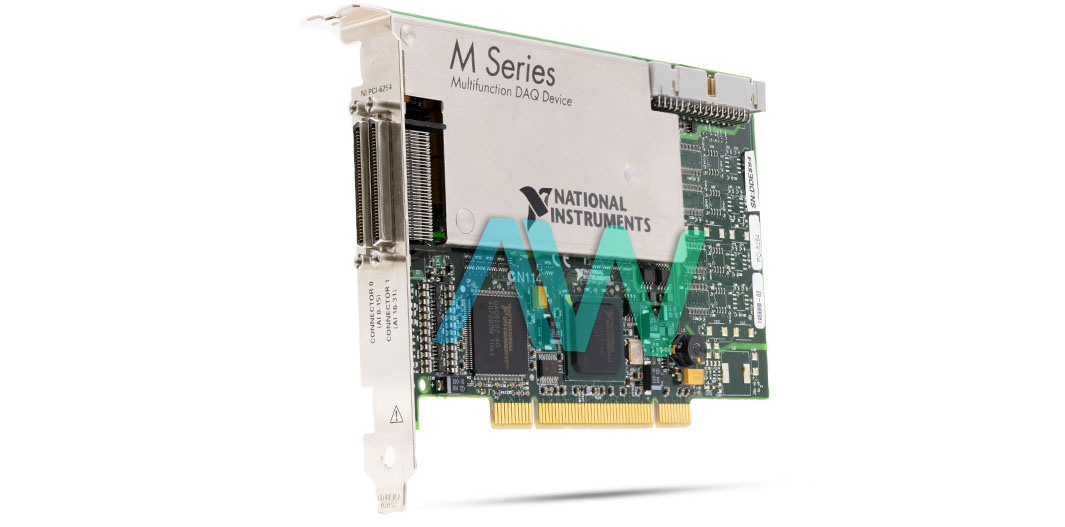

PCI-6254 National Instruments Multifunction DAQ | Apex Waves | Image PCI-6254 National Instruments Multifunction DAQ | Apex Waves | ImagePCI-6254PCI-6254 | Legacy, Refurbished and New Surplus
PCI-6254 National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6254 National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6254 New
PCI-6254 | Legacy, Refurbished and New Surplus

PCI-6254

4.5/5 | 7 ratings

Modular Systems > National Instruments > M Series

Part Number PCI-6254
Manufacturer/Brand National Instruments
Description: PCI-6254, 48 Digital I/O, 16-Bit, Multifunction DAQ
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:


National Instruments PCI-6254 Multifunction DAQ

The National Instruments PCI-6254 (Part number: 779071-01) is a fast Multifunctional M Series data acquisition (DAQ) board. It is developed to operate at high sampling rates. This M Series device consists of advanced properties such as NI-MCal tuning technology, which helps improve the accuracy of measurements.  This model is also structured with the NI-STC 2 system controller and the NI-PGIA 2 programmable amplifier. These features help to enhance precision and completion. The NI PCI 6254 has 32 single-ended or 16 differential analog input channels (with a 16-bit resolution and a maximum sampling rate of 1.25 MS/s), 48 digital I/O and 2 counter/timer I/O lines (with a 32 bit resolution and a frequency of 80 MHz). It is featured with an analog and digital trigger system. These provides four times increased resolution. It also has the NI LabVIEW SignalExpress LE communicating data sorting software and NI-DAQmx driver software.

The National Instruments PCI 6254 has 32 differential clocked lines. These lines can operate to 10 MHz frequency. It has a built-in NIST-traceable standardization system. There are also more than 70 signal conditioning options. The built-in NI-PGIA 2 amplifier enables the NI PCI-6254 to settle time at a higher scanning rate. It ensures the 16 bit resolution precision even at the greatest speed while measuring all channels. The NI PCI 6254 driver enables communication between the DAQ hardware and system software. This driver software helps prevent crashes and increases system and hardware performance. The device is equipped with 2 68-pin VHDCI I/O connectors.

The National Instruments PCI 6254 can operate at the maximum sample rate of 1.25 MS/s per channel. The highest average sampling rate for multichannel is 1 MS/s. The maximum operating voltage for analog inputs is ±11 V. This range is for both signal and common modes. The PCI-6254 has one external digital trigger with selectable polarity. The device weighs 5.3 oz., and measures 3.8 x 6.1 in. in physical dimensions. It has a recommended operating temperature range of 0 ºC to 55 ºC.

PCI-6254 Legacy Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

The PCI-6254 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PCI-6254 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PCI-6254 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PCI-6254!

ModelPCI-6254
ManufacturerNational Instruments
Part Number779071-01
SeriesM Series
TypeMultifunction DAQ
Analog Input Channels32 (16-Bit, 1.25 MS/s) or 16 differential
Analog Output Channels0
Digital Input/Output48
Timing I/O2 Counter/Timer I/O (32 bits, 80 MHz)
I/O Connector2 68-pin VHDCI
Power Requirements+5 V, +3.3 V, +12 V -- 0.03 A, 0.725 A, 0.35 A
Dimensions3.8 × 6.1 in.
Weight5.3 oz.
Driver SoftwareNI-DAQmx, NI-DAQmx Base
WarrantyThree Year Warranty
PCI-6254 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6254 Frequently Asked Questions



Question: What is the timing accuracy of the NI PCI 6254?



Answer: The timing accuracy of the NI PCI 6254 is 50 ppm of the sample rate.



Question: Which analog trigger modes are available on the PCI 6254?



Answer: The PCI 6254 has the following analog trigger modes: analog window triggering, analog edge triggering, and analog edge triggering with hysteresis.



Question: Which type of I/O connectors are on the NI PCI-6254?



Answer: The NI PCI-6254 has two 68-pin VHDCI I/O connectors.



Question: What is the channel-to-earth maximum working voltage of the PCI-6254?



Answer: The channel-to-earth maximum working voltage of the PCI-6254 is 11 V, Measurement Category I.
