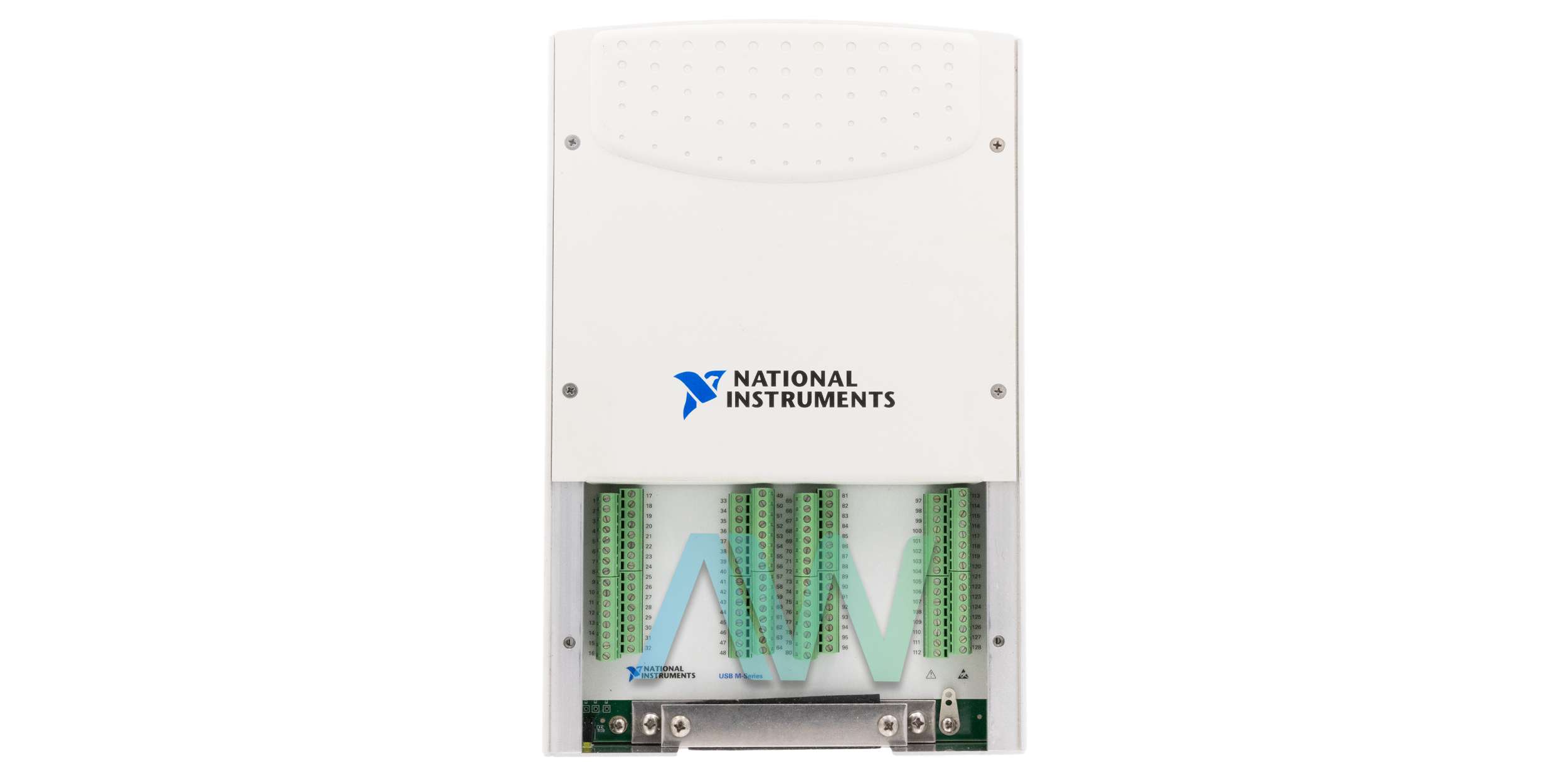

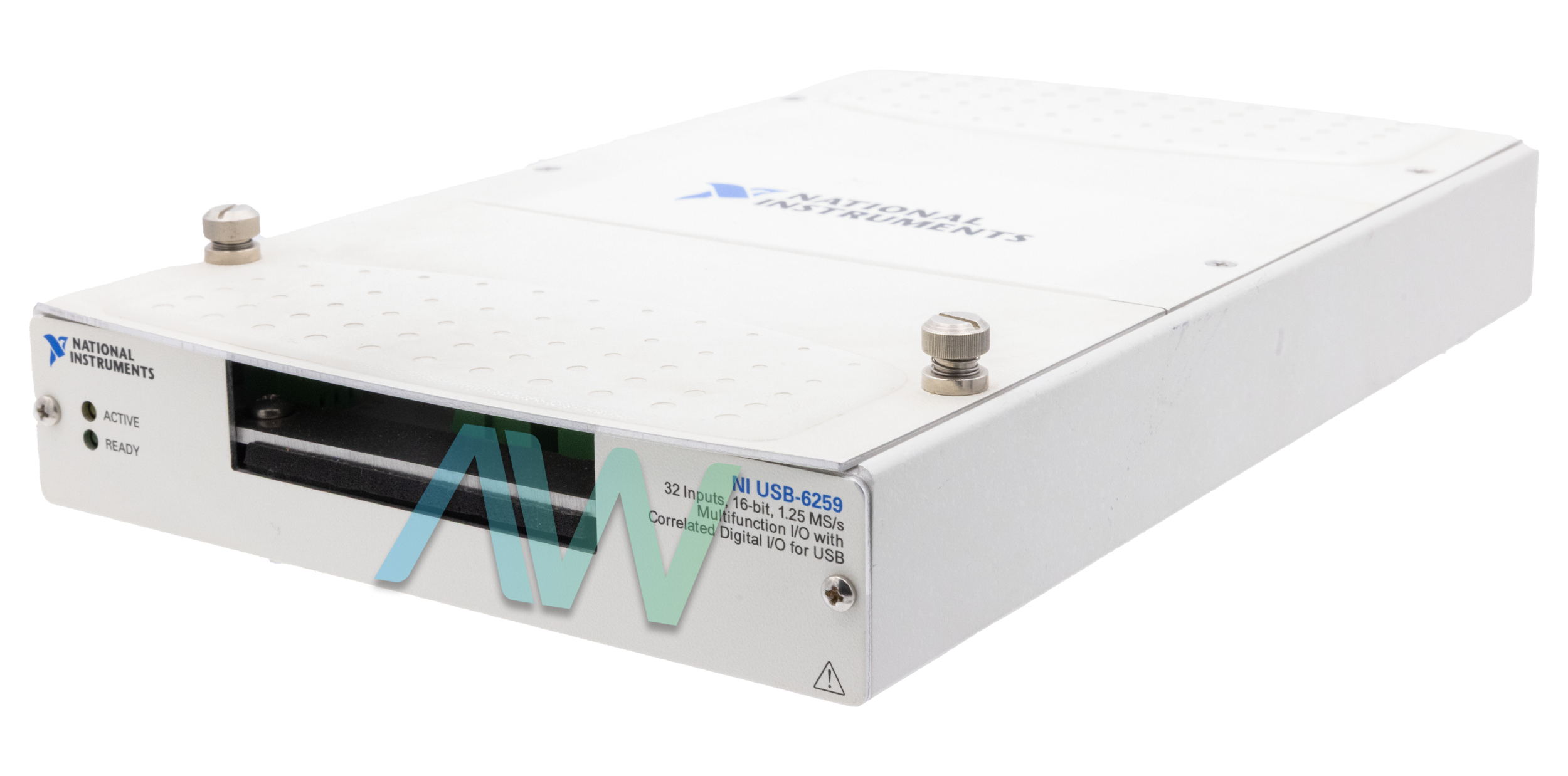

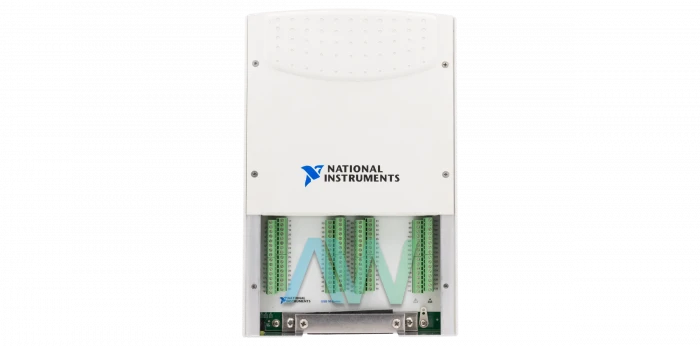

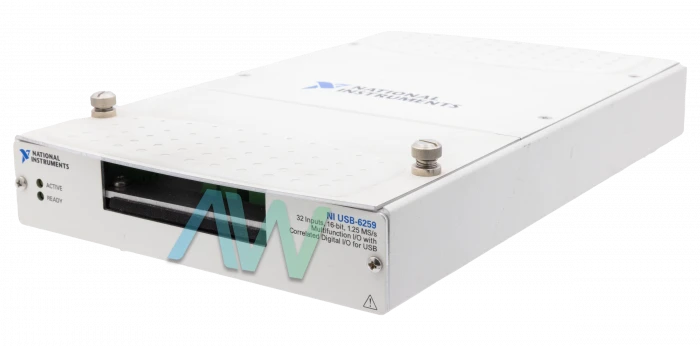

National Instruments USB-6259 Multifunction DAQ Device

The USB-6259 (Part Numbers: 780114-01, 780114-04, 779628-01) is a 16-bit Multifunction DAQ Device by National Instruments. This instrument supports two types of triggering: Analog Triggering and Digital Triggering. This device comes with two 32-bit counters. These counters are also known as timers. These counters/timers work at a rate of 80 MHz. There are additionally 32 single-ended or 16 differential analog input channels. There are four analog output channels present in this device. This Multifunction DAQ Device offers Signal Streaming, which is available for four High-Speed Data Streams.

The NI USB-6259 incorporates NI-MCal technology to achieve accuracy for calibration. This Multifunction DAQ Device works with Windows Vista, Windows XP, and Windows 2000. The signal streaming integrates three innovative hardware-level and software-level design elements. This feature enables high-speed data streams and bidirectional data streams.

The NI USB DAQ 6259 Multifunction DAQ Device allows the user to implement control loops. The user can perform multiple loops at the same time. This National Instruments Multifunction DAQ Device performs this function with the help of 32 analog input and 4 analog output channels, as well as multiple clocked digital lines. The USB 6259 NI device is compatible with a platform for conditioning for the NI-SCC signal. This allows the user to carry out the measurements for different requirements of the sensor. It is also required for voltage inputs greater than 10V. This feature provides power and amplification filtering for every type of sensor and enhances the accuracy up to 10 times.

ModelUSB-6259
ManufacturerNational Instruments
Part Numbers780114-01, 780114-04, 779628-01
TypeMultifunction DAQ Device
Analog Input Channels16 differential or 32 single-ended
Analog Output Channels4
Maximum Sample Rate1.25 MS/s (single channel)
DimensionsScrew Terminal: 10.5 in. × 6.73 in. × 1.75 in.; BNC: 11.25 in. × 6.7 in. × 2.7 in.
WeightScrew Terminal: 2 lb 11 oz.
WarrantyOne Year Warranty
USB-6259 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments USB-6259 Frequently Asked Questions



Question: Why does the USB-6259 have multiple part numbers?



Answer: The USB-6259 has several different specifications between the part numbers. For example, part number 780114-01 has BNC connectors and a U.S. 120 VAC supported power input. Part number 780114-04 has BNC connectors and a Euro 240 VAC supported power input. The last part number, 779628-01, has screw terminal connectors and a 120 VAC supported power input.



Question: What is the minimum sample rate for the NI USB-6259?



Answer: There is not a minimum sample rate for the NI USB-6259.



Question: What is the maximum update rate for all four analog output channels on the USB 6259 NI?



Answer: The maximum update rate for all four analog output channels on the USB 6259 NI is 1.25 MS/s per channel.



Question: How long is the calibration interval for the NI USB DAQ 6259?



Answer: The NI USB DAQ 6259 has a 2 year calibration interval.
