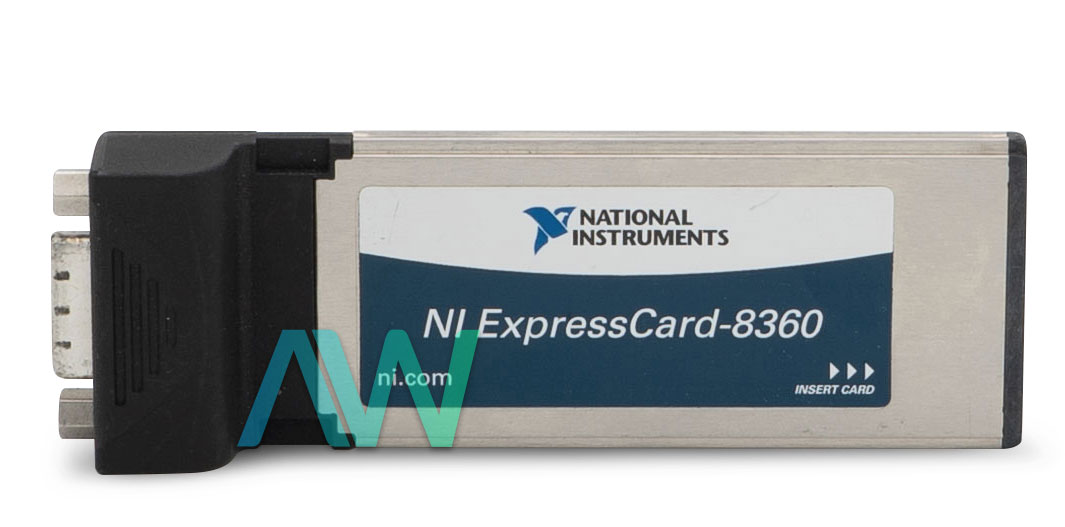

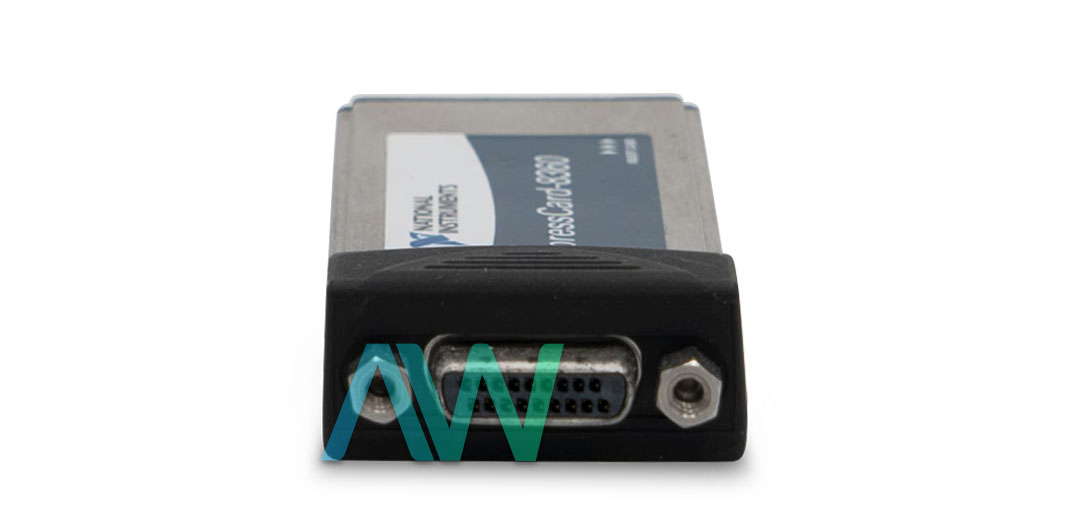

National Instruments ExpressCard-8360 MXI-Express Interface
The ExpressCard-8360 is a single channel MXI Express module. The ExpressCard-8360 kit consists of a high-speed connector cable, cable driver, and an express card module connector. This ExpressCard 8360 is manufactured by National Instruments and can be ordered using part number 779507-01. The NI ExpressCard-8360 can be connected with other devices with the same built-in high-speed cable connector since it provides all necessary signals for the connection, such as a system clock and a reset signal. The National Instruments ExpressCard-8360 is fully compatible and operated with the specifications of PXI hardware. This interface has a maximum cable length of 7 m.
The ExpressCard 8360 requires a maximum of 20 mA current to operate at +3.3 V Aux or a maximum current of 30 mA. The NI ExpressCard-8360 pollution degree should be nonconductive in category 2 and is for indoor use only. The ExpressCard-8360 can bear a non-operating thermal shock of -20° to 65° C, 5 times up to 5 ms. The ExpressCard-8360 has high bandwidth serial connection which is transparent to drivers, software, and other applications to control PXI systems by using servers, workstations, laptops, and high-performance desktop systems.
The slot requirements for the National Instruments ExpressCard-8360 are one ExpressCard/34 or ExpressCard/54 slot. For complete express functionality, such as controller identification, trigger routing, chassis identification, and slot detection, install the service software of the PXI Platform. The MXI-Express BIOS compatibility software also supported by the ExpressCard 8360 but this is not a physical dip switch supported but toggled using software.
The ExpressCard-8360 is no longer available from the manufacturer, NI (National Instruments). However, the MXI Interface will remain available in perpetuity for both purchase and repair services with Apex Waves!
| Model | ExpressCard-8360 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779507-01 |
| Type | MXI Interface |
| Sustained Throughput | 110 MB/s |
| Slot Requirements | One ExpressCard/34 or ExpressCard/54 slot |
| Operating Temperature | 0 to 65 °C |
| Storage Temperature | –20 to 65 °C |
| Dimensions | 4.0 by 1.3 in. (10.2 × 3.4 cm) |
| Weight | Typically 29 g (0.063 lb) |
| ExpressCard-8360 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing |
Associated part numbers for ExpressCard-8360:
National Instruments ExpressCard-8360 MXI-Express Interface
Question: What is the maximum cable length for the ExpressCard-8360?
Answer: The maximum cable length is 7 m.
Question: What are the power requirements of the MXI Interface?
Answer: The ExpressCard-8360 has a typical current of 360 mA and a maximum current of 450 mA with a power rail of +3.3 V.
Question: What is the ExpressCard-8360 compatible with?
Answer: This model is fully compatible with revision 2.1 of the PXI Hardware Specification.
Question: Can I clean off the interface?
Answer: If needed, the ExpressCard-8360 can be cleaned off with a soft, nonmetallic brush. It must be completely dry before use.
