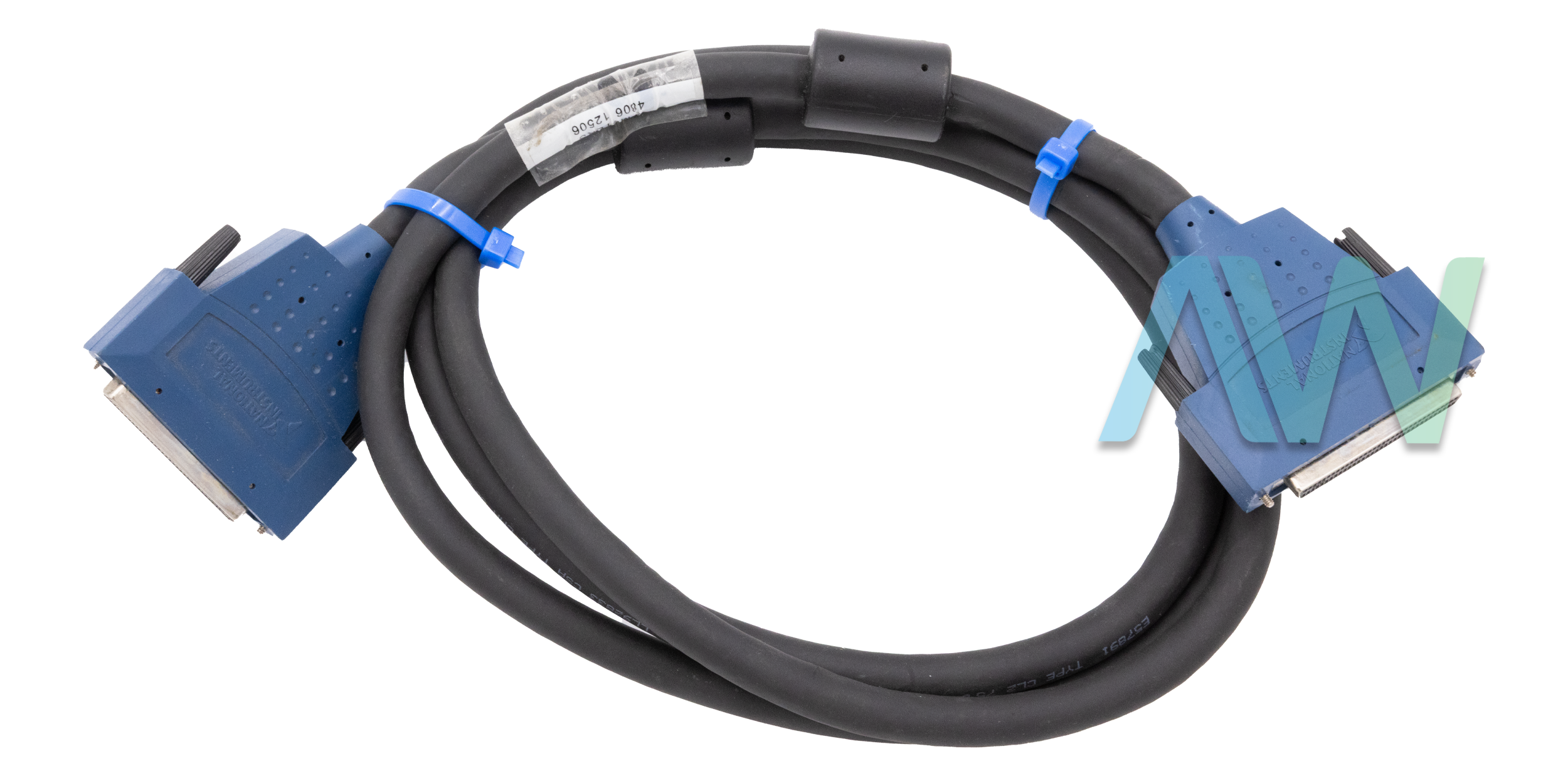

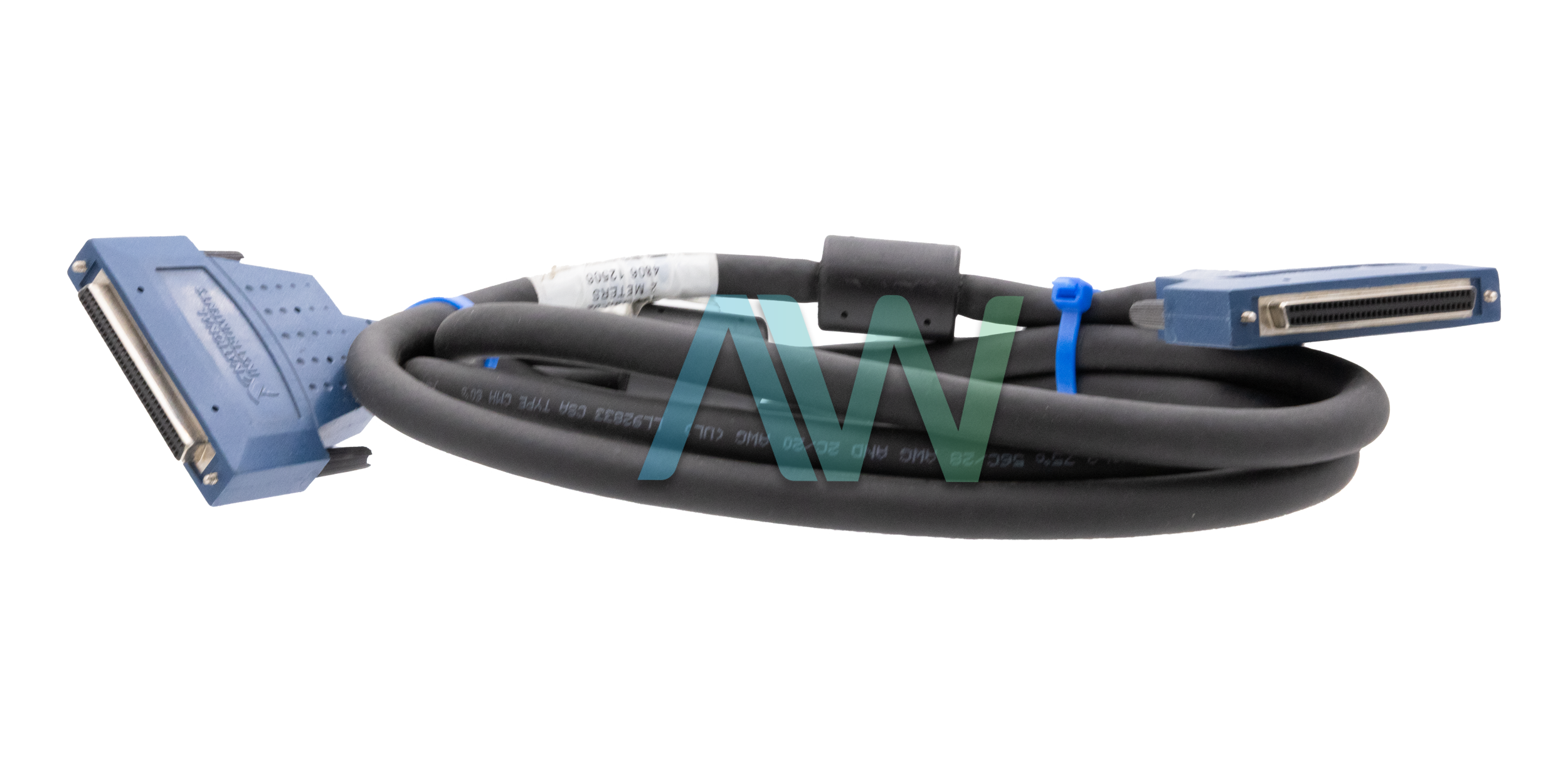

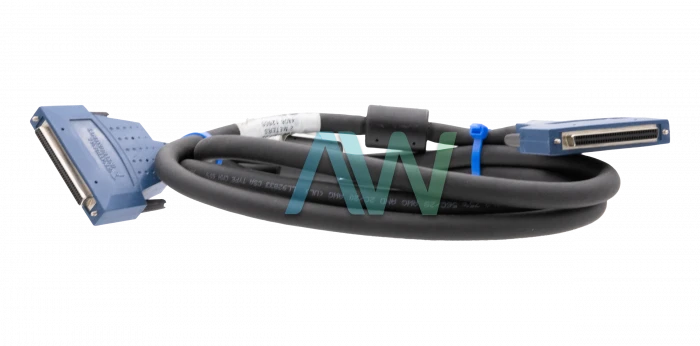

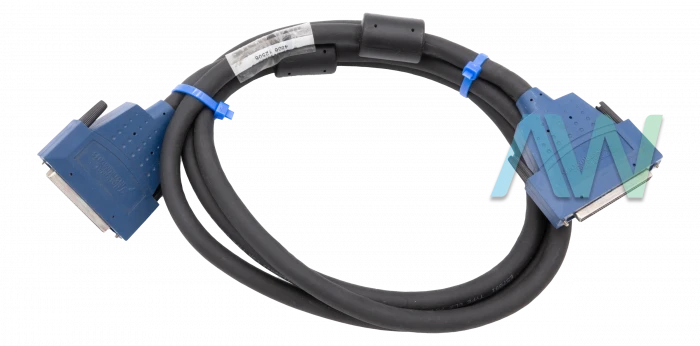

National Instruments SH68-68-EP Cable
Designed to work with various 68-pin National Instruments devices, the SH68-68-EP (Part Number: 184749-01) is a 1 m, noise-rejecting, shielded cable. You can also acquire this cable in 2 meter (Part Number: 184749-02), 5 meter (Part Number: 184749-05), and 10-meter lengths (Part Number: 184749-10). This cable comes with 2 SCSI 0.050 D-Type female connectors. The SH68-68-EP is extensively found in applications where E Series DAQ devices are used in conjunction with the SC-204x Series accessories. Moreover, it is compatible with different connector blocks, including the CB-68LPR, SCB-68 and the AT-MIO-16E-10.
The SH68-68-EP Cable features multilayer shielding. Thus, the cable can be used in a variety of challenging applications where the signal’s integrity cannot be compromised. The outer jacket of this cable is made from specially designed, fire-resistant plastic material. The connectors incorporated in this cable offer direct connectivity to National Instruments B Series, S Series, E Series, and USB M Series devices.
| Model | SH68-68-EP |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 184749-01, 184749-02, 184749-05, 184749-10 |
| Type | Cable |
| Compatible Model | AT-MIO-16E-10 |
| Cable Lengths | 1 m, 2 m, 5 m, or 10 m |
| Shielded | Yes |
| Warranty | Three Year Warranty |
| SH68-68-EP Manual | User Manual and Maintenance Manual Available for Download |
Associated NSNs for the SH68-68-EP:
6150-01-497-0912 (6150014970912), 6150-01-565-9290 (6150015659290)
National Instruments SH68-68-EP Frequently Asked Questions
Question: When should the SH68-68-EP cable be used?
Answer: The SH68-68-EP cable can be used with NI Multifunction I/O devices and modules that feature the SCSI 0.050 D-Type connector.
Question: Is the SH68-68-EP cable shielded?
Answer: Yes. The SH68-68-EP is a shielded, 68-conductor cable.
Question: What is the typical conductor DC resistance of Digital Single Conductors with the SH68-68-EP cable?
Answer: The typical resistance is 0.070 Ohms/ft. This is the maximum at 20 °C.
SH68-68-EP PDF Manuals
AO WAVEFORM CALIBRATION PROCEDURE FOR NI DAQMX.PDF
ARCHIVED DAQ ADAPTER USER GUIDE.PDF
ARCHIVED NI EDUCATIONAL LABORATORY VIRTUAL INSTRUMENTATION SUITE NI ELVIS HARDWARE USER MANUAL.PDF
BNC 2090A QUICK START GUIDE.PDF
BNC 2110 INSTALLATION GUIDE.PDF
BNC 2111 INSTALLATION GUIDE.PDF
COMBUSTION ANALYSIS SYSTEM SOFTWARE USER MANUAL.PDF
DAQ MULTIFUNCTION I O MIO AND SIMULTANEOUS MULTIFUNCTION I O SMIO DEVICES CALIBRATION PROCEDURE.PDF
NI 6703 6704 CALIBRATION PROCEDURE FOR NI DAQMX.PDF
NI 6711 6713 DAQCARD 6715 SPECIFICATIONS.PDF
NI 671X 673X CALIBRATION PROCEDURE.PDF
NI 6731 6733 SPECIFICATIONS.PDF
SCC 68 USER GUIDE AND SPECIFICATIONS.PDF
SCXI 1125 USER MANUAL AND SPECIFICATIONS.PDF
