PCI-6542

4.7/5 | 10 ratings

Modular Systems > National Instruments > PCI Waveform Generators

Part Number PCI-6542
Manufacturer/Brand National Instruments
Description: PCI-6542, 100 MHz, Digital Waveform Device
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

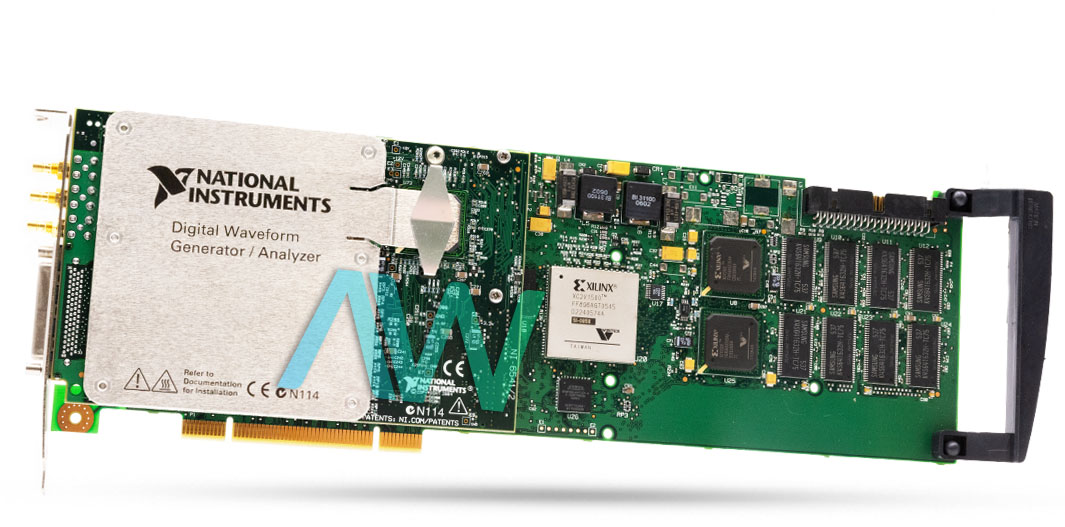

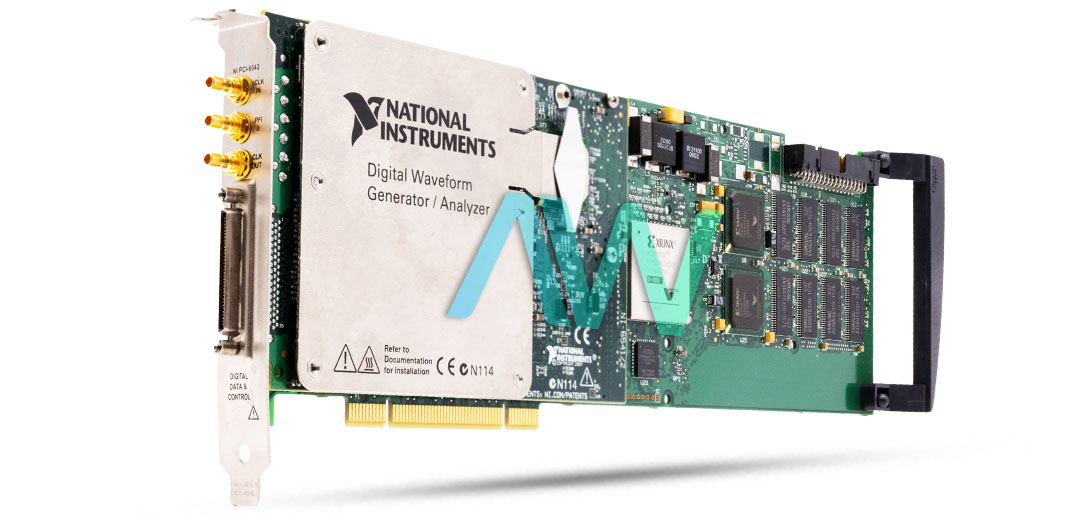

National Instruments PCI-6542 Digital Waveform Device

The PCI‑6542 (Part Numbers: 778989-02 and 778989-03) is a Digital Waveform Device. Try not to open the module to temperatures or dampness past the appraised maximums. Keep the module free of residue by cleaning with compacted air as it were. Try not to clean the module with any solvents or fluids.

The NI Script Editor is incorporated on the NI-HSDIO DVD and is introduced when the user introduces the driver. The NI Script Editor gives a natural interface to enable users to create connecting and circling waveform age tasks. The NI Script Editor Help contains more data about the NI Script Editor. NI prescribes utilizing the NI CB-2162 single-finished advanced I/O assistant to get to the signals on the 68-stick DDC connector and to end the DIO channels. The NI CB-2162 also gives a stage to circuit prototyping and DUT testing. The NI CB-2162 is particularly intended for use with single-finished NI advanced waveform generator/analyzers.

NI additionally offers the NI SMB-2163 breakout box for National Instruments single-finished computerized waveform generator/analyzers, such as the NI PCI-6542. The NI SMB-2163 offers coaxial SMB connectors for each channel on the DDC connector, giving a simple method to interface with different gadgets for testing and troubleshooting. This link offers availability like that found on a normal logic analyzer, so it can be utilized in logic analyzer-type applications. Not at all like a typical logic analyzer, in any case, this link takes into consideration concurrent example generation and obtaining with the goal that users can utilize it in jolt/reaction applications too.

ModelPCI-6542
ManufacturerNational Instruments
Part Numbers778989-01, 778989-02, 778989-03
TypeDigital Waveform Device
Data Channels32 ( TTL Compatibility)
Sample Clock Frequency100 MHz
Onboard Memory Size1 Mbit/Channel, 8 Mbit/Channel, 64 Mbit/Channel
I/O Connector68-pin VHDCI
Power Requirements+3.3 VDC, +5VDC, +12 VDC, -12VDC - 1.6A, 1.2A, 0.25A, 0.06A
Power Dissipation15 W
Dimensions4.95 in. by 13.9 in.
Weight0.9 lb.
Software DriverNI-HSDIO
Warranty2-3 Year Warranty
PCI-6542 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PCI-6542:

1.88076E-19, 188076F-26L, 188076H-26L, 191431A-04, 191431A-05, 191431A-06, 191431B-04, 191431B-05, 191431B-06, 191431B-06L, 191431C-04L, 191431C-05L, 191431C-06L, 191431D-04L, 191431D-05L, 191431D-06L, 778989-01, 778989-02, 778989-03, 779635-01

National Instruments PCI-6542 Frequently Asked Questions



Question: What is the difference between the two part numbers for the PCI 6542?

Answer: The PCI 6542 has two onboard memory size options. Part number 778989-02 has 16 Mbit of onboard memory and part number 778989-03 has 64 Mbit of onboard memory.



Question: What are the logic levels and range of the NI PCI 6542?

Answer: The logic levels and range of the NI PCI 6542 are 1.8V, 2.5V, 3.3V.



Question: Which driver software supports the PCI-6542?

Answer: The PCI-6542 is supported by NI-HSDIO 1.2 driver software and later versions.



Question: Which types of I/O connectors are on the NI PCI-6542?

Answer: There are SMB jack I/O connectors on the NI PCI-6542 for CLK IN, CLK OUT, and PFI 0, as well as a 68-pin VHDCI I/O connector for digital data and control.

  PCI-6542 PDF Manuals

Driver Downloads for PCI-6542






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
