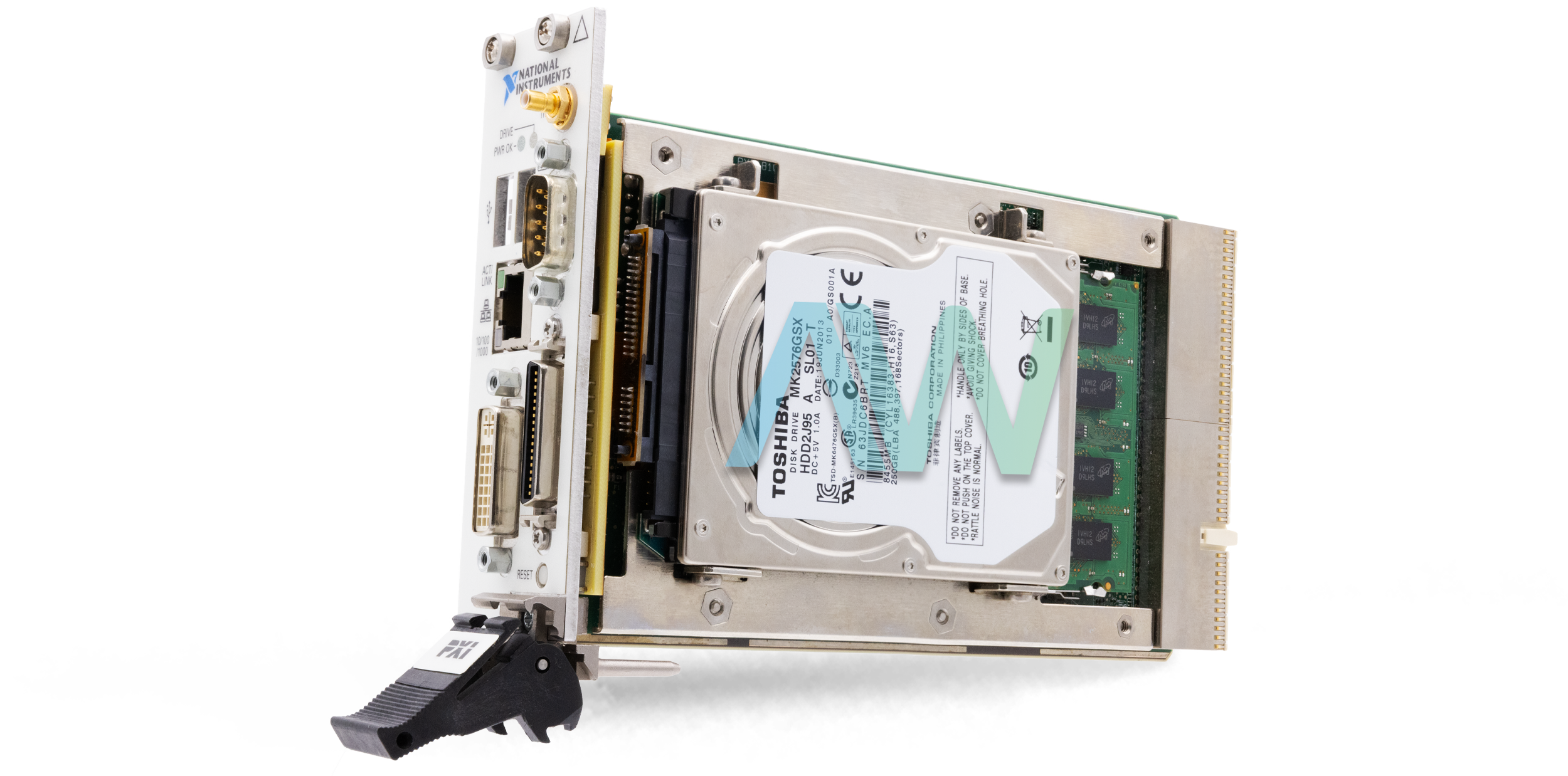

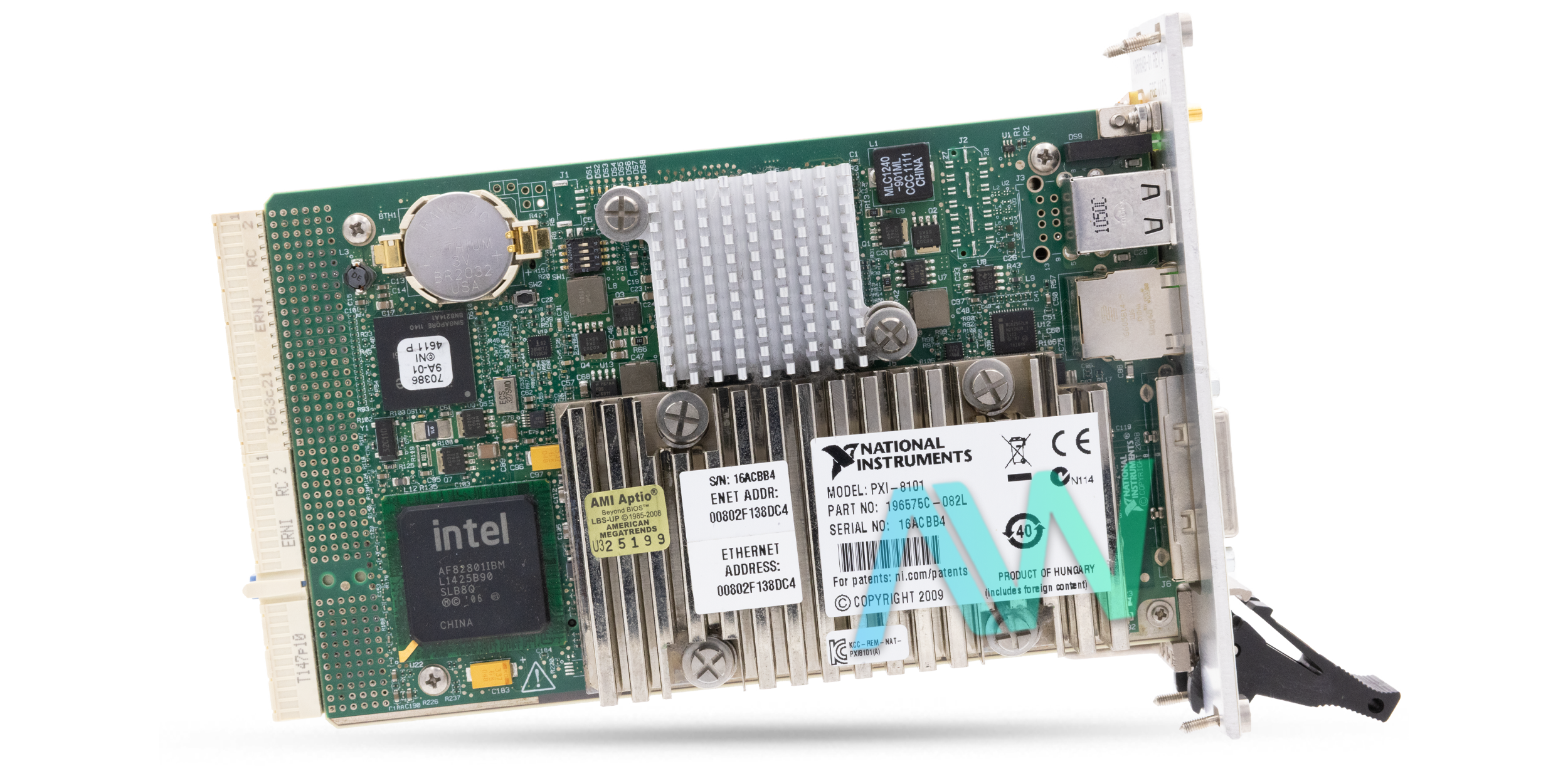

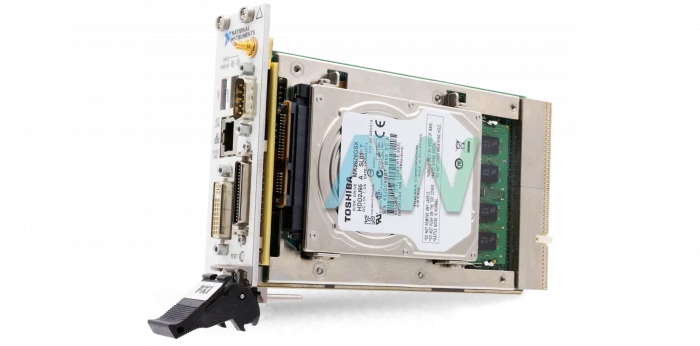

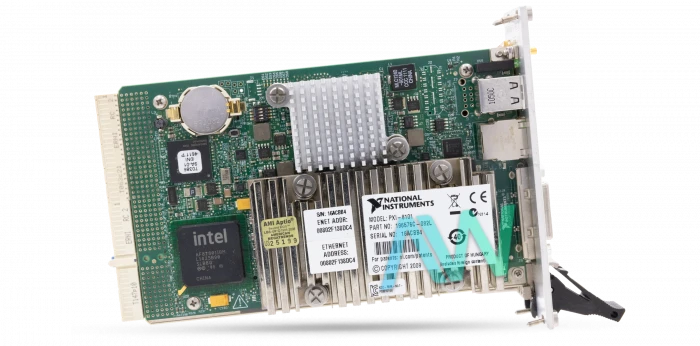

National Instruments PXI-8101 PXI Controller

Featured with the 2.0 GHz Intel Celeron 575 Processor, the National Instruments PXI-8101 (Part Numbers: 780955-01 and 780955-02) is a 2-slot embedded Controller designed for PXI systems. This Controller is used to create a portable PC-based platform for data acquisition, test and measurement, and industrial control applications. This model features two Hi-Speed USB ports, a 0/100/1000BASE-TX (Gigabit) Ethernet serial port, as well as an integrated hard drive. By using state-of-the-art packaging, this Controller integrates standard I/O features in a single unit. By type, the PXI-8101 is a modular PC and is designed in 3U-size form factor.

This Controller comes with a pre-installed OS and allows the user to install a different OS as well. With this Controller, the user will be able to make changes in configuration settings through the BIOS setup program, which includes numerous menus for enabling or disabling NI PXI-8101 controller features. However, in most cases, users will find the default settings well suited for most of their applications. To couple with any PXI backplane trigger line, the National Instruments PXI-8101 comes equipped with a front panel SMB connector.

The NI PXI-8101 has two front panel LEDs that show PC status to keep the user purged with real-time information. In addition, a controller reset push button is also provided on the front panel that can be used for issuing a total reset command to the controller. For fast data storage at high rates, the National Instruments PXI-8101 features one 2.5 in. SATA notebook type internal hard disk drive. This model also supports more flexible options as it comes with USB storage support.

PXI-8101 Obsolete Status has been announced by National Instruments, but the controller will still be available for purchase and repairs by Apex Waves.

ModelPXI-8101
Part Numbers780955-01, 780955-02
ManufacturerNational Instruments
TypePXI Controller
Slots2
CPUIntel Celeron 575 (2.0 GHz)
L2 Cache1 MB
Dimensions1.59 x 5.14 x 8.51 in.
Weight1.42 lb.
WarrantyOne Year Warranty
PXI-8101 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8101 Frequently Asked Questions



Question: Why are there two part numbers for the PXI-8101 Controller?



Answer: The PXI-8101 Controller has compatibility available for different operating systems. Part number 780955-01 is designed for Windows XP and part number 780955-02 is designed for Windows Vista.



Question: Which software types are standard on the PXI-8101?



Answer: The PXI-8101 comes with Microsoft Windows OS, NI-VIA and NI-448.2 drivers, and drivers for every built-in I/O port.



Question: What is the standard memory size for the PXI 8101?



Answer: The standard memory size for the PXI 8101 is 1 GB.



Question: How many hi-speed USB ports does the NI PXI-8101 have?



Answer: The NI PXI-8101 has 2 hi-speed USB ports.
