PXI-2534

5/5 | 6 ratings

Modular Systems > National Instruments > PXI Matrix Switch Modules

Part Number PXI-2534
Manufacturer/Brand National Instruments
Description: PXI-2534, 256-Crosspoint, PXI Matrix Switch Module
In Stock | Ships in 5-10 Days
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:


National Instruments PXI-2534 PXI Matrix Switch Module

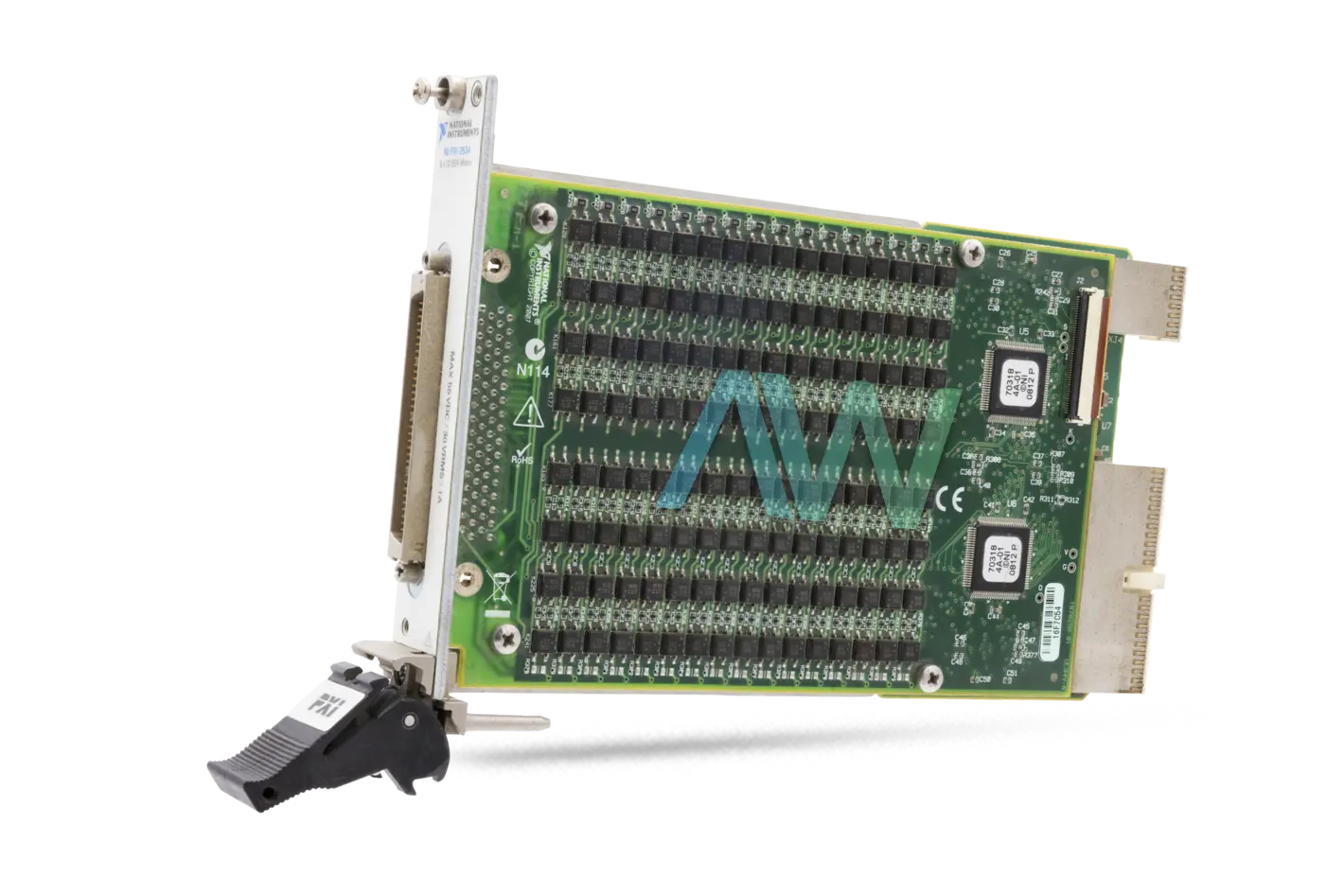

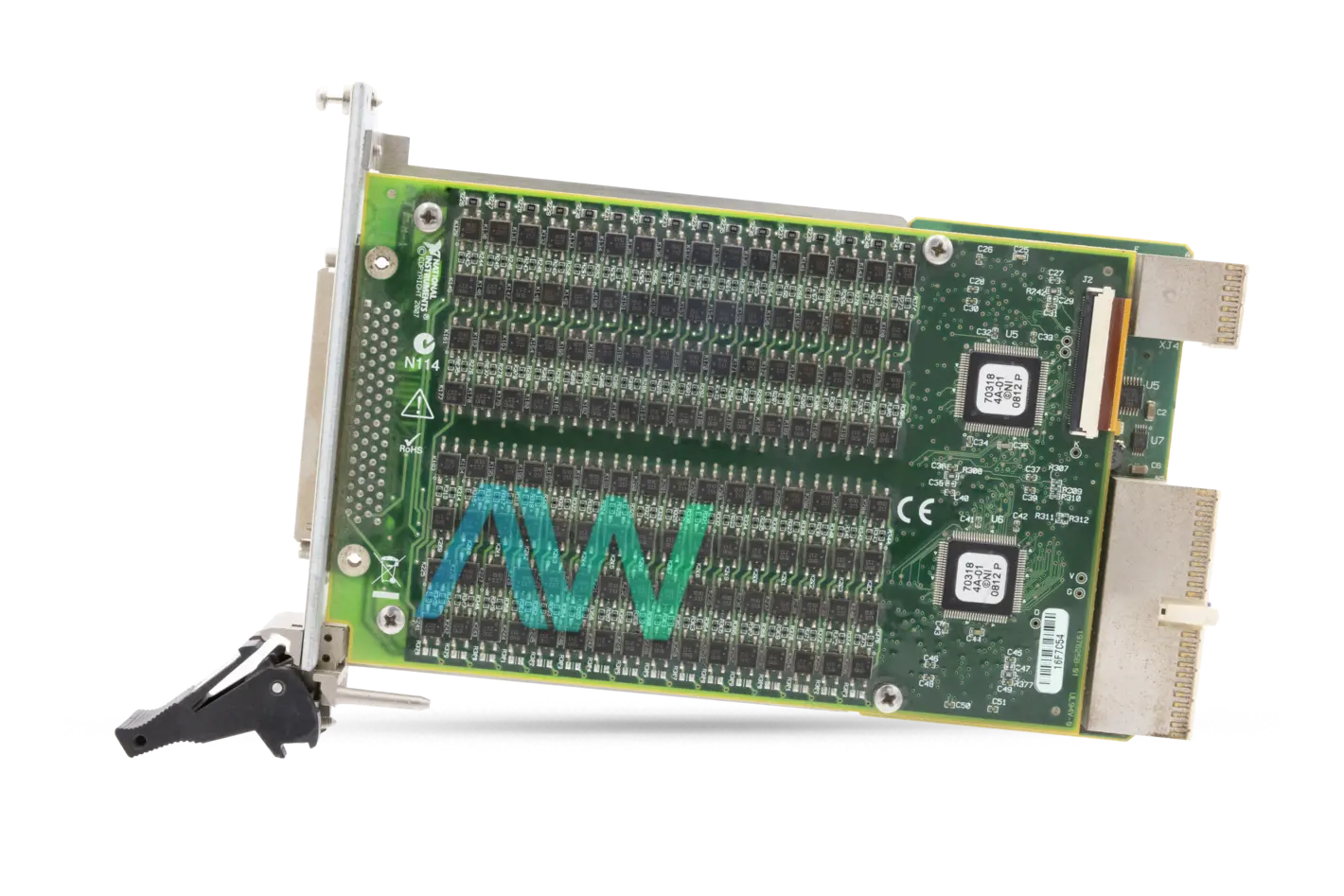

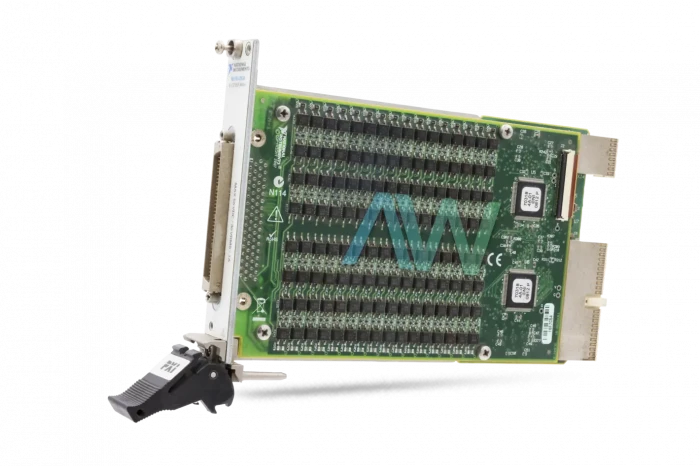

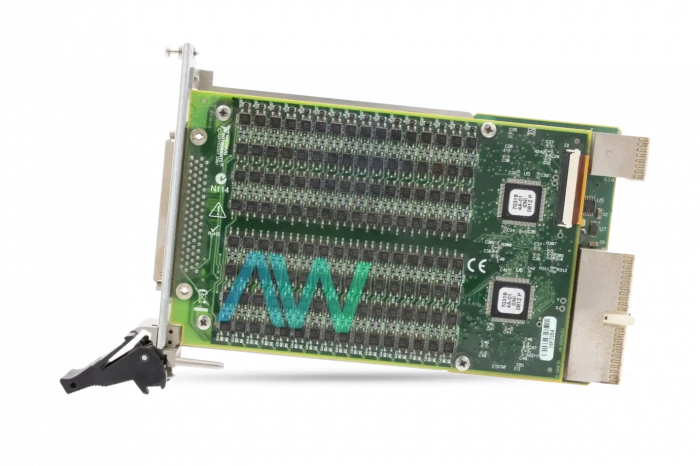

The National Instruments PXI-2534 (Part Number: 778572-34) is a Solid-State Relay, 1-Wire, 256-Crosspoint PXI Matrix Switch Module. This high-density switch is built to handle high-channel-count automated test systems efficiently as it tends to route 55 W simultaneously across all channels. When switching <20 V and 1 ampere, this switch module can deliver a scan rate up to 400 crosspoints/s. The NI PXI-2534 can be configured in a 1-wire 8 × 32 matrix topology.

This model comes equipped with high-quality SSRs featuring an unlimited expected relay life and 724 µs operate time. As many as 256 relays of this switch module can be derived simultaneously. The PXI-2534 can acquire ±55 VDC, 30 VACrms (channel-to-channel, channel-to-ground) maximum switching voltage and 1 Amps maximum switching current.

 The National Instruments PXI-2534 can send trigger signals via PXI trigger lines 0 to 7 at 1 µs to 62 µs (programmable) pulse widths and can receive triggers at a minimum pulse width of 70 n-seconds. This PXI Matrix Switch Module comes equipped with a 68-pin male SCSI type I/O connector. As far as its physical characteristics are concerned, the PXI-2534 is a lightweight, compact, 3U, one slot, PXI module. The weight and dimensions are 238 g and 21.6 × 2.0 × 13.0 cm respectively. While operating in a typical 50Ω system and one row to one column configuration, the NI PXI-2534 offers >2 MHz single crosspoint bandwidth and <-45 dB crosstalk at 10 kHz.

ModelPXI-2534 (778572-34)
ManufacturerNational Instruments
TypePXI Matrix Switch Module
Crosspoints256
Banks1
Rows8
Columns32
Dimensions8.5 x 0.8 x 5.1 in.
Weight8.4 oz.
WarrantyOne Year Warranty
PXI-2534 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2534 Frequently Asked Questions



Question: What relay type does the NI PXI-2534 PXI Matrix Switch Module have?



Answer: The NI PXI-2534 PXI Matrix Switch Module has solid state relays.



Question: What is the PXI-2534 switch bandwidth?



Answer: The PXI-2534 switch bandwidth is 2 MHz.



Question: What is the maximum switching voltage DC and maximum switching current DC for the NI PXI-2534?



Answer: The NI PXI-2534 has a maximum switching voltage DC of 55 V and a maximum switching current DC of 1 A.



Question: Which accessories are available for the PXI-2534?



Answer: The PXI-2534 has the following accessories available for an additional purchase: the NI TB-2637 matrix terminal block (Part number: 780271-01), NI TBX-68 I/O unshielded, I/O connector block with DIN-rail mounting (Part number: 777141-01), SH68-68S shielded cable, 1 m (Part number: 185262-01), SH68-68S shielded cable, 2 m (Part number: 185262-02) and SH68-68S shielded cable, 5 m (Part number: 185262-05).

  PXI-2534 PDF Manuals

  PXI-2534 Diagrams

Driver Downloads for PXI-2534






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit

 Download Version
