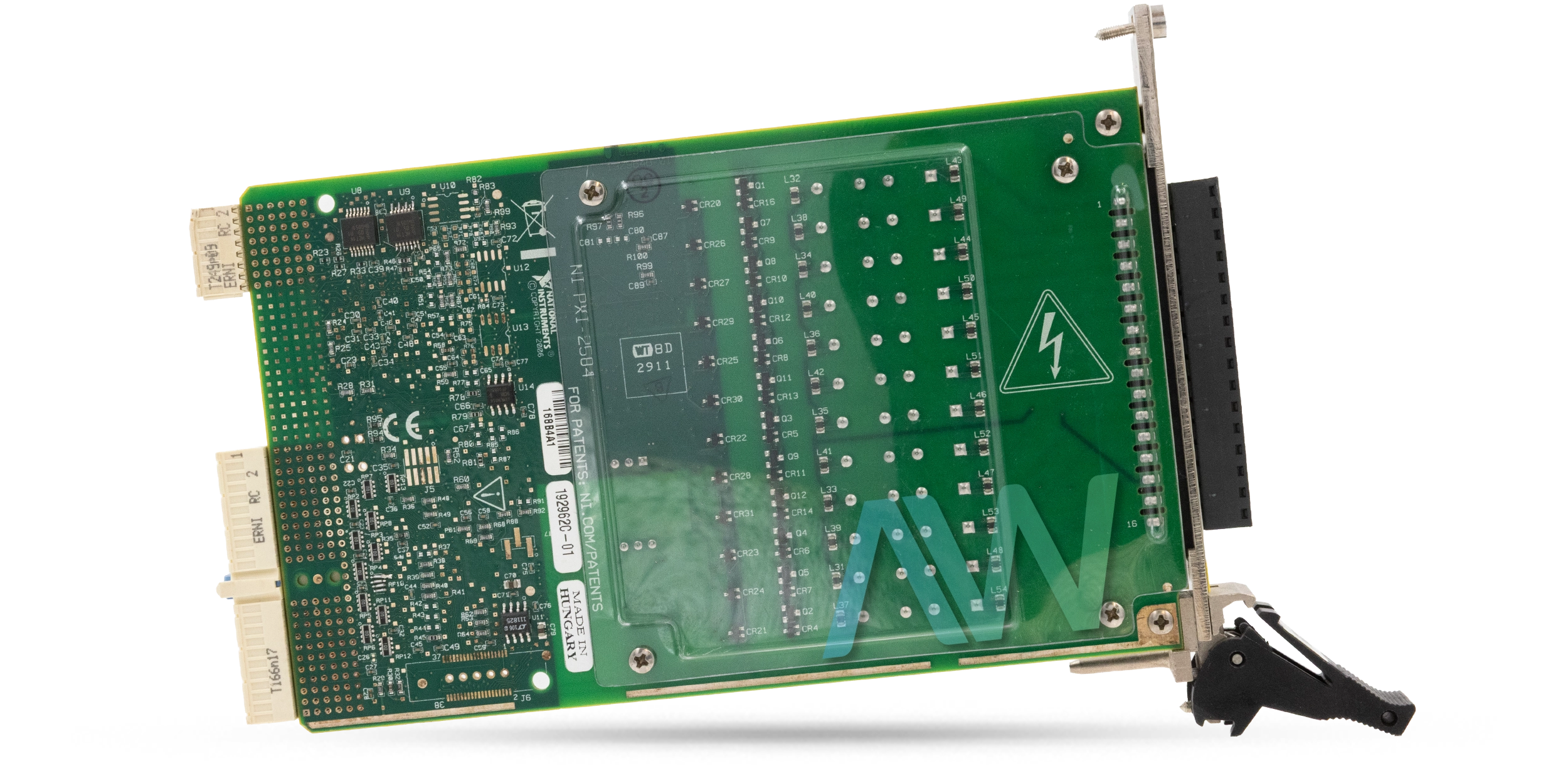

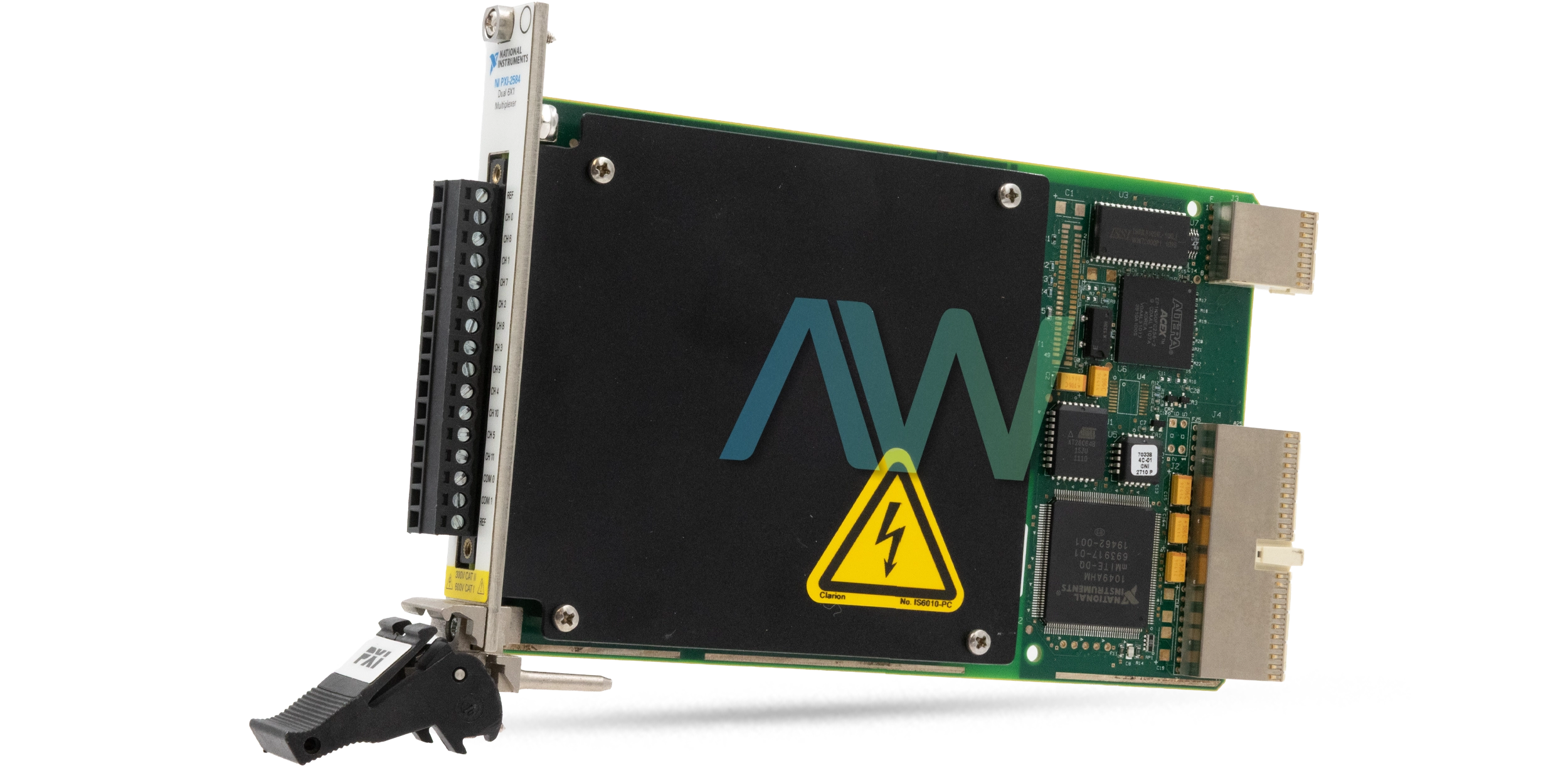

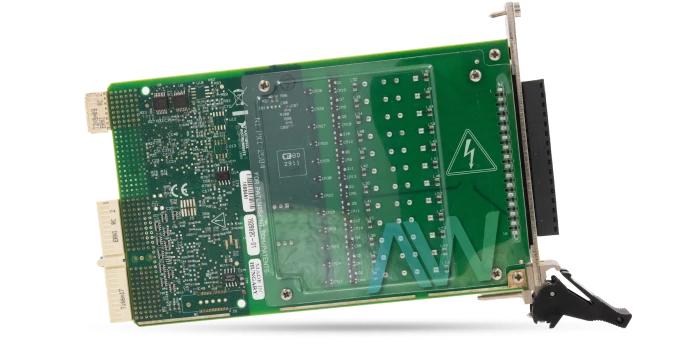

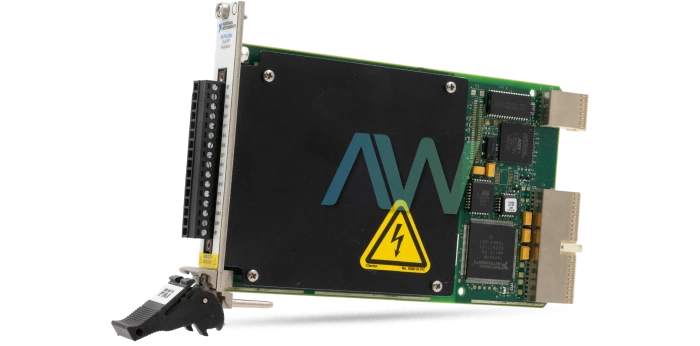

PXI-2584 National Instruments Multiplexer Switch Module | Apex Waves | ImagePXI-2584 National Instruments Multiplexer Switch Module | Apex Waves | ImagePXI-2584 NewPXI-2584 | Legacy, Refurbished and New Surplus
PXI-2584 National Instruments Multiplexer Switch Module | Apex Waves | Image
PXI-2584 National Instruments Multiplexer Switch Module | Apex Waves | Image
PXI-2584 New
PXI-2584 | Legacy, Refurbished and New Surplus

PXI-2584

4.5/5 | 6 ratings

Modular Systems > National Instruments > PXI Multiplexer Modules

Part Number PXI-2584
Manufacturer/Brand National Instruments
Description: PXI-2584, 6 or 12 Channel, 600 V, PXI Multiplexer Switch Module
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments PXI-2584 PXI Multiplexer Switch Module

The PXI-2584 (Part number: 778572-84) is a 1-Wire, 12-Channel PXI Multiplexer Switch Module designed for high-voltage applications. The NI PXI-2584 comes equipped with reed relays featuring 0.4 ms (typical) relay operating time and 3 × 108 cycle mechanical relay life. The reed relays guarantee quicker actuation times and longer lasting test equipment. This module can be utilized in multimodule arrangements for completing measurements on hundreds of channels. With this module, the user can achieve various topologies, such as a 1-wire 12 × 1 multiplexer, 2-wire 6 × 1 multiplexer, 1-wire dual 6 × 1 multiplexers, and a 2-wire 11 x 1 interleaved multiplexer. The device has a switch bandwidth of 900 kHz. The PXI-2584 can be utilized with the NI-SWITCH Front Panel for easy relay functions. It can also be utilized for debugging switch code/execution.

This Multiplexer Switch Module has a CAT II certification at 300 V and can route general-purpose ATE loads or high-voltage, low-current signals. The PXI-2584 also has 600 V CAT I channel-to-ground isolation, which makes it well-suited for fuel cell and battery stack applications. This module can withstand less than or equal to 2,500 V surge voltage. The NI PXI-2584 can provide 10 Watts switching power and 0.5 A carry or switching current per channel. This module is also designed to offer 600 channels/s maximum scan rate.

The reed relays incorporated in the National Instruments PXI-2584 have a rhodium relay contact material. For receiving and outputting trigger signals, the NI PXI-2584 utilizes PXI trigger lines <0...7>. It can accept signals generated at 150 ns minimum pulse width and can generate signals over a broad range of programmable pulse widths, i.e. 1 µs to 62 µs. As far as its power requirements are concerned, the NI PXI-2584 is an efficient module since it consumes only 1.6 W at 5 V.

The NI device weighs 7.5 oz, and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -20 °C to 70 °C, and an operating and non-operating random vibration of 0.31 grms and 2.46 grms respectively–all at a frequency range of 5 to 500 Hz.

ModelPXI-2584
ManufacturerNational Instruments
Part Number778572-84
TypePXI Multiplexer Switch Module
Channels12, 6
Banks1, 2
Switch Bandwidth900 kHz
Dimensions8.5 in. × 0.8 in. × 5.1 in.
Weight7.5 oz.
WarrantyThree Year Warranty
PXI-2584 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-2584:

192962A-01, 192962B-01, 192962C-01, 192962D-01L, 192962E-01L, 192962F-01L, 778572-84

National Instruments PXI-2584 Frequently Asked Questions



Question: What relay type does the PXI-2584 have?



Answer: The PXI-2584 has reed relays.



Question: What is the PXI-2584 module’s scan rate?



Answer: The PXI-2584 module’s scan rate is 600 cycles/s.



Question: What is the maximum switching voltage DC of the NI PXI-2584?



Answer: The NI PXI-2584 has a maximum switching voltage DC of 600 V.



Question: What type of I/O connector is on the PXI-2584?



Answer: The PXI-2584 has a mini-combicon, 3.81 mm (16 position) I/O connector.
