PXI-2596

4.5/5 | 14 ratings

Modular Systems > National Instruments > PXI Multiplexer Modules

Part Number PXI-2596
Manufacturer/Brand National Instruments
Description: PXI-2596, 6-Channel, PXI RF Multiplexer Switch Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

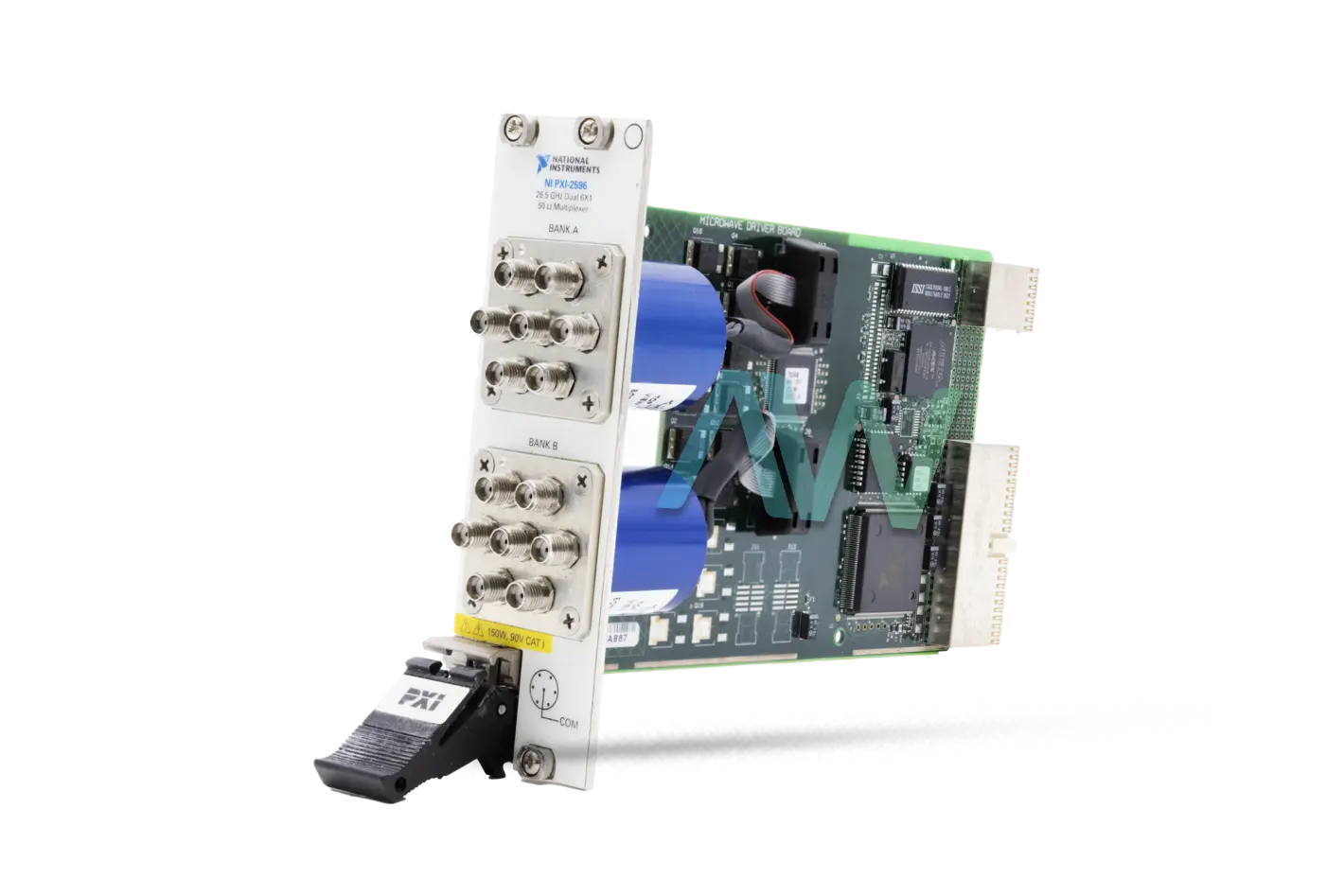

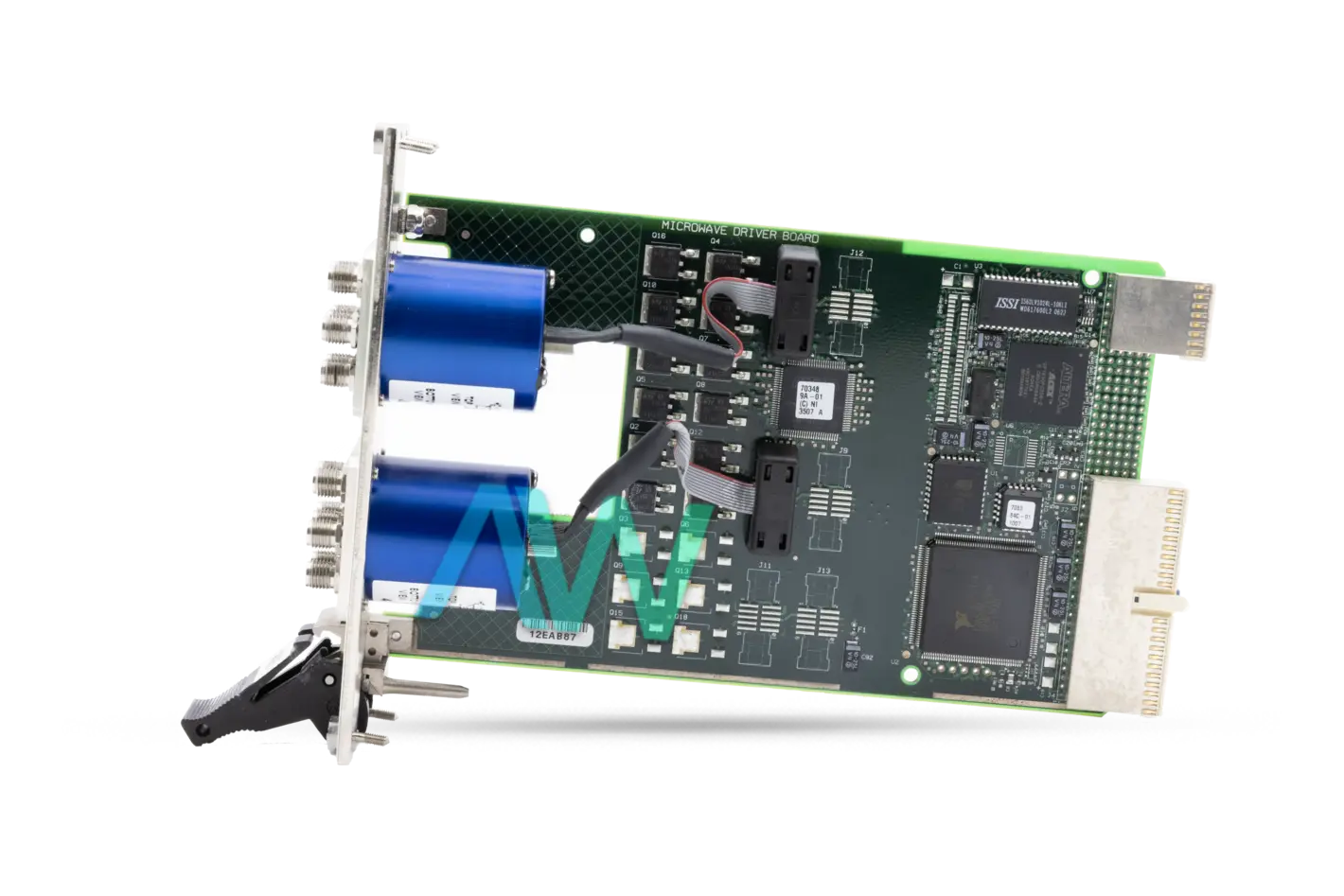

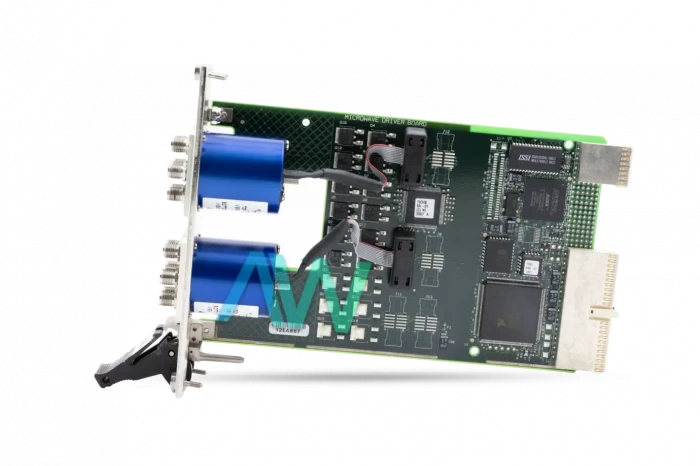

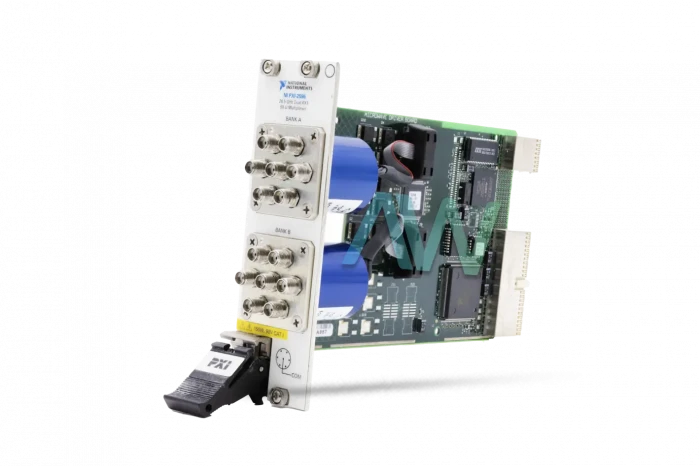

National Instruments PXI-2596 PXI RF Multiplexer Switch Module

The National Instruments PXI-2596 (Part Number: 778572-96) is a multiplexer, SPDT relay, and transfer switch module intended for routing RF or microwave signals in automated test applications. The PXI-2596 offers 26.5 GHz switching in various PXI arrangements for an entire switching solution on one platform. Utilizing microwave relays from Radiall, the module is intended to work with under 1 dB insertion loss up to 26.5 GHz, limiting effects on the test framework and showing up relatively imperceptible to signals at much lower frequencies. This module is perfect for passing high-order harmonics from RF upconverters, such as the NI PXI-5671 2.7 GHz vector signal generator or directing different sources to RF downconverters like the NI PXI-5660 2.7 GHz vector signal analyzer.

To configure and control the NI PXI-2596 RF Multiplexer Switch Module, engineers can utilize NI Switch Executive 2.1, which presents a few new highlights for Excel, RF switching, and switch framework troubleshooting. The updated software gives engineers automatic access to settings on a per-switch route basis, so they can store RF path calibration and parametric data, enhancing general test framework exactness.

With the new configuration programming interface, specialists can determine and arrange their NI Switch Executive virtual gadget from any programming condition, including NI TestStand test management software, the NI LabVIEW graphical development condition, NI LabWindows/CVI ANSI C development software, and Microsoft Excel. With this new usefulness, specialists can import existing switch route records made in Excel into the NI Switch Executive environment, making them simpler to keep up and adjust.

ModelPXI-2596 (778572-96)
ManufacturerNational Instruments
TypePXI RF Multiplexer Switch Module
Banks2
Channels6
Switch Bandwidth26.5 GHz
Dimensions8.5 x 1.6 x 5.1 in.
Weight13.8 oz.
Warranty2-3 Year Warranty
PXI-2596 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-2596:

192723A-01, 192723B-01, 192723C-01, 192723D-01, 192723F-01L, 192723G-01L, 193271A-01, 193271B-01, 193271C-01, 193271D-01L, 193271E-01L, 193271F-01L, 200077A-01, 200131A-01, 200463A-01, 778572-96

National Instruments PXI-2596 Frequently Asked Questions



Question: What type of I/O connector is on the PXI-2596?



Answer: There are 14 SMA jacks on the PXI-2596.



Question: What is the power requirement for the NI PXI-2596?



Answer: The power requirement for the NI PXI-2596 is 2.5 W at 3.3 V, 1 W at 5 V, and 6 W at 12 V.



Question: What is the maximum insertion loss of the PXI-2596?



Answer: The maximum insertion loss of the PXI-2596 is -0.3 dB.



Question: What is the recommended cycle speed for the PXI-2596 RF Multiplexer Switch Module?



Answer: The recommended cycle speed for the PXI-2596 RF Multiplexer Switch Module is 5 channels/s.

  PXI-2596 PDF Manuals

  PXI-2596 Diagrams

Driver Downloads for PXI-2596






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit

 Download Version
