PXIe-6547
Modular Systems > National Instruments > PXI Waveform Generators
Description: | PXIe-6547, 32-Channel, 100 MHz PXI Digital Waveform Instrument |
Need an Official Quote?
Or speak to a sales representative for additional information:

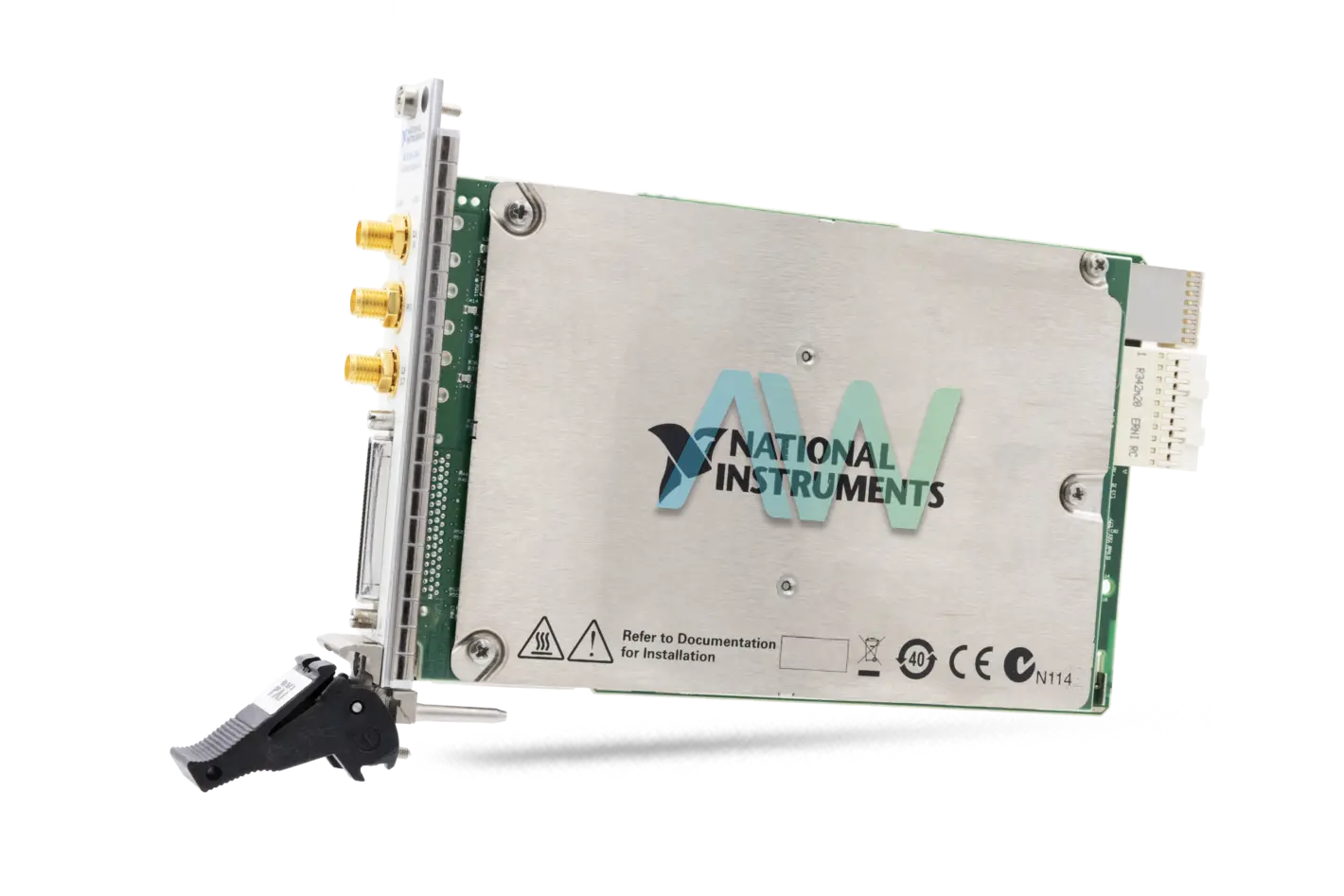

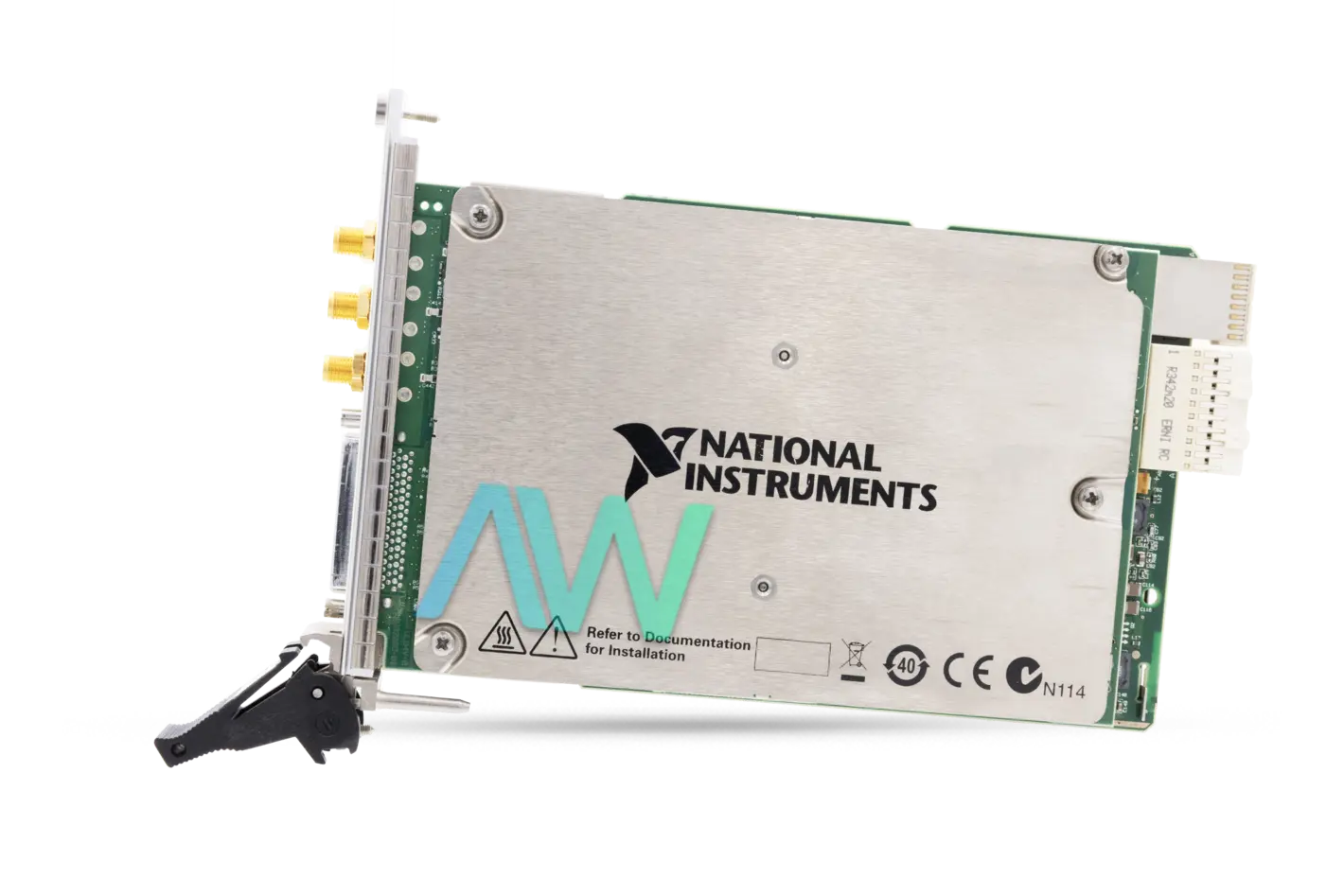

National Instruments PXIe-6547 PXI Digital Waveform Instrument
The PXIe-6547 (Part Numbers: 781011-01, 781011-02, 781011-03 and 199552B-02L) PXI Digital Waveform Instrument has 200 MHz bandwidth and 32 Channels. This Digital Waveform Instrument has propelled synchronization capacities to fabricate incorporated blended signal test frameworks and advanced timing highlights per bank. The gadget is equipped for inspecting advanced waveforms up to 200 MHz and building up interfaces with client programmable voltage levels that have a resolution of 100 mV. The NI PXIe-6547 additionally includes propelled synchronization abilities to fabricate incorporated blended signal testing frameworks, equipment examination for bit mistake testing, and digital timing highlights per bank.
The PXIe 6547 module includes improved planning and synchronization capacities. The locally available direct digital synthesis (DDS) clock gives subhertz determination going up to 200 MHz, so the user can clock information (generation or acquisition) with higher accuracy without using an outer clock. The user would now be able to accomplish applications for discretionary clock frequencies with this instrument. The user can share clocks over the PXI backplane or through an SMA connector on the front board of the gadget. The user can also clock their information by bringing in an outside clock through the front board or backplane. With these highlights, the user can synchronize the NI PXIe 6547 module with other analog or advanced instruments. This module is based on the Synchronization and Memory Core (SMC), allowing the user to synchronize various SMC-based gadgets (analog or advanced) by utilizing the NI-TCLK API. The user can accomplish sub-nanosecond resolution while synchronizing numerous gadgets and make synchronized high-channel-count frameworks in a PXI Express chassis.
Model | PXIe-6547 |
---|---|
Part Numbers | 781011-01, 781011-02, 781011-03, 199552B-02L |
Manufacturer | National Instruments |
Type | PXI Digital Waveform Instrument |
Bidirectional Digital Channels | 32 |
Maximum Clock Rate | 100 MHz |
Total Power | 32.2 W |
Dimensions | 21.6 x 2.0 x 13.0 cm. |
Weight | 519 g. |
Warranty | Three Year Warranty |
PXIe-6547 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-6547:
198204D-01L, 198204E-01L, 198204F-01L, 199952A-01L, 199952A-02L, 199952A-03L, 199952B-01L, 195906B-27L, 199952B-02L, 199952B-03L, 199952C-01L, 199952C-02L, 199952C-03L, 199952D-01L, 199952D-02L, 199952D-03L, 781011-01, 781011-02, 781011-03
National Instruments PXIe-6547 Frequently Asked Questions
Question: What is the difference between the two part numbers for the PXIe-6547?
Answer: The PXIe-6547 has three onboard memory sizes for the user to choose from: part number 781011-01 has 1 Mbit of onboard memory, part number 781011-02 has 8 Mbit onboard memory, and part number 781011-03 has 64 Mbit onboard memory.
Question: Does the NI PXIe-6547 support hardware compare?
Answer: Yes, both part numbers for the NI PXIe-6547 support hardware compare.
Question: What is the generation voltage resolution for the PXIe-6547?
Answer: The generation voltage resolution for the PXIe-6547 is 100 mV.
Question: What is the duration of the output protection on the NI PXIe-6547?
Answer: The duration of the output protection on the NI PXIe-6547 is indefinite.
PXIe-6547 PDF Manuals
MAINTAIN FORCED AIR COOLING NOTE TO USERS.PDF
NI HIGH SPEED DIGITAL WAVEFORM GENERATOR ANALYZER GETTING STARTED GUIDE.PDF
NI PXIE 6544 6545 6547 6548 GETTING STARTED GUIDE.PDF
NI PXIE 6544 6545 6547 6548 SPECIFICATIONS.PDF
PXIE 6544 6545 6547 6548 LETTER OF VOLATILITY.PDF
Driver Downloads for PXIe-6547
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXIe-6547
Modular Systems > National Instruments > PXI Waveform Generators
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs
- Drivers

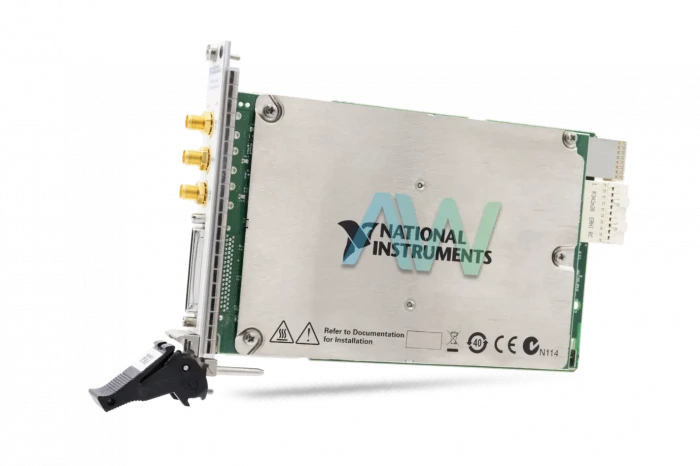

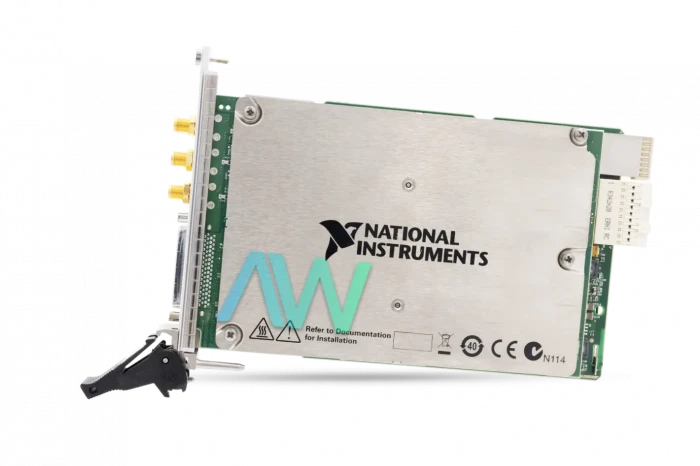

National Instruments PXIe-6547 PXI Digital Waveform Instrument
