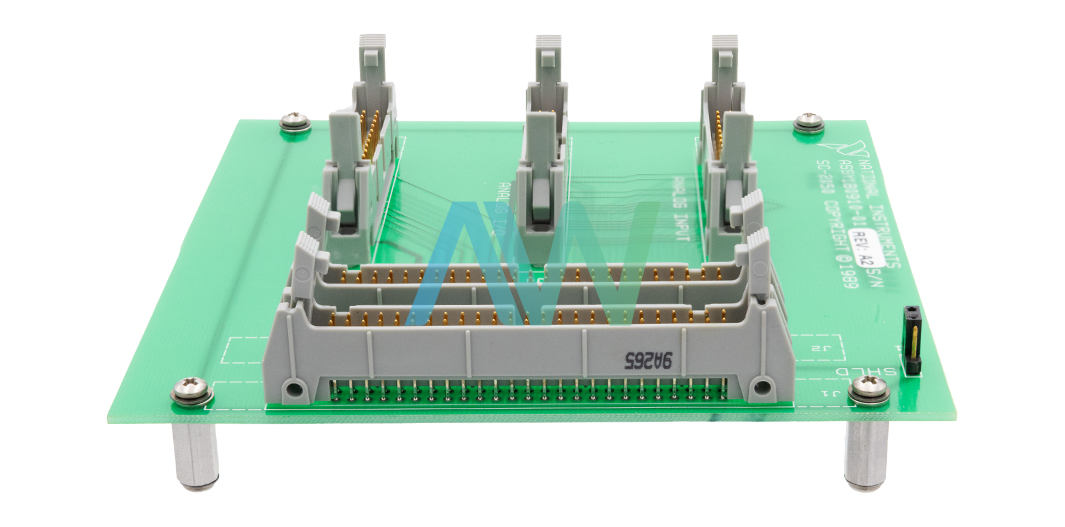

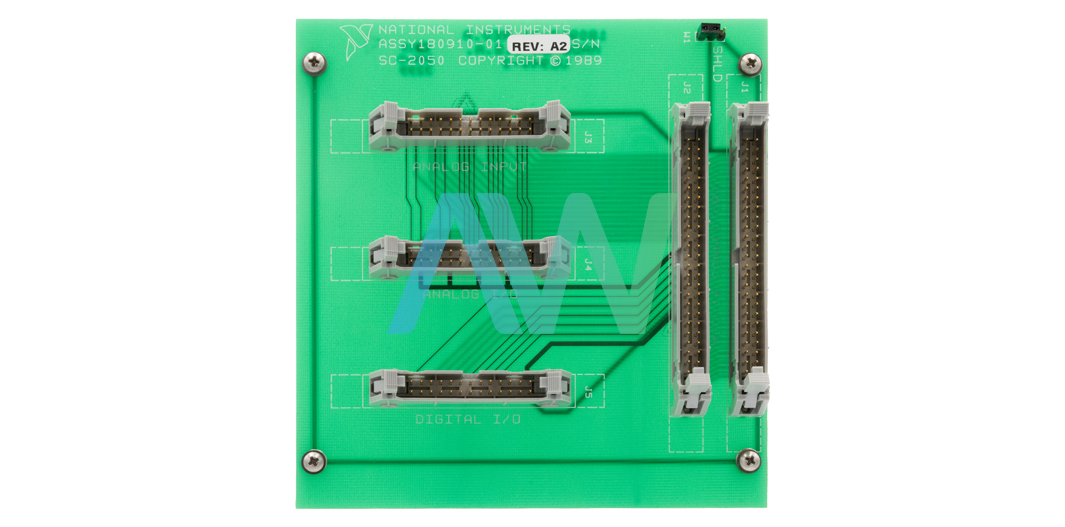

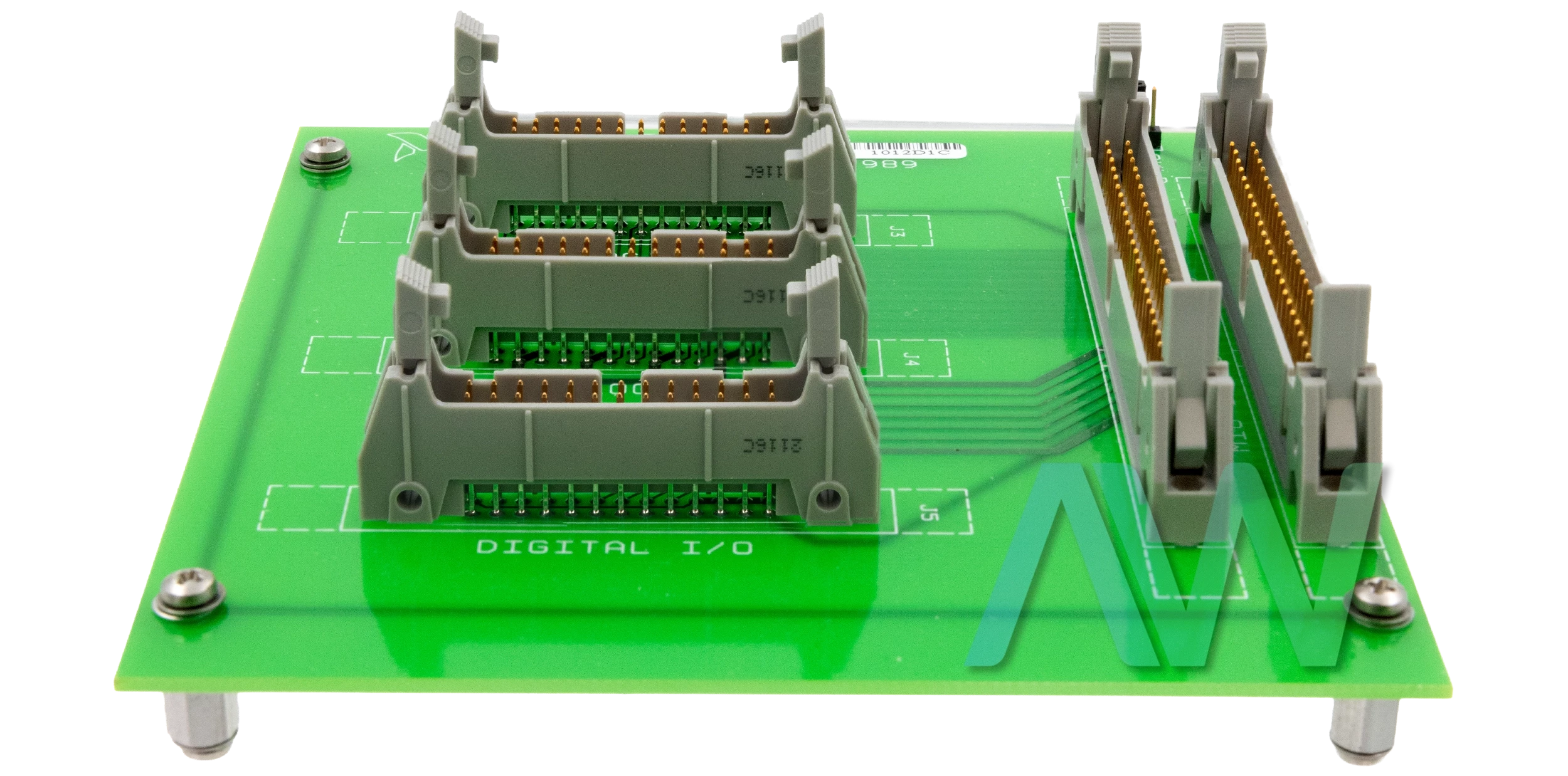

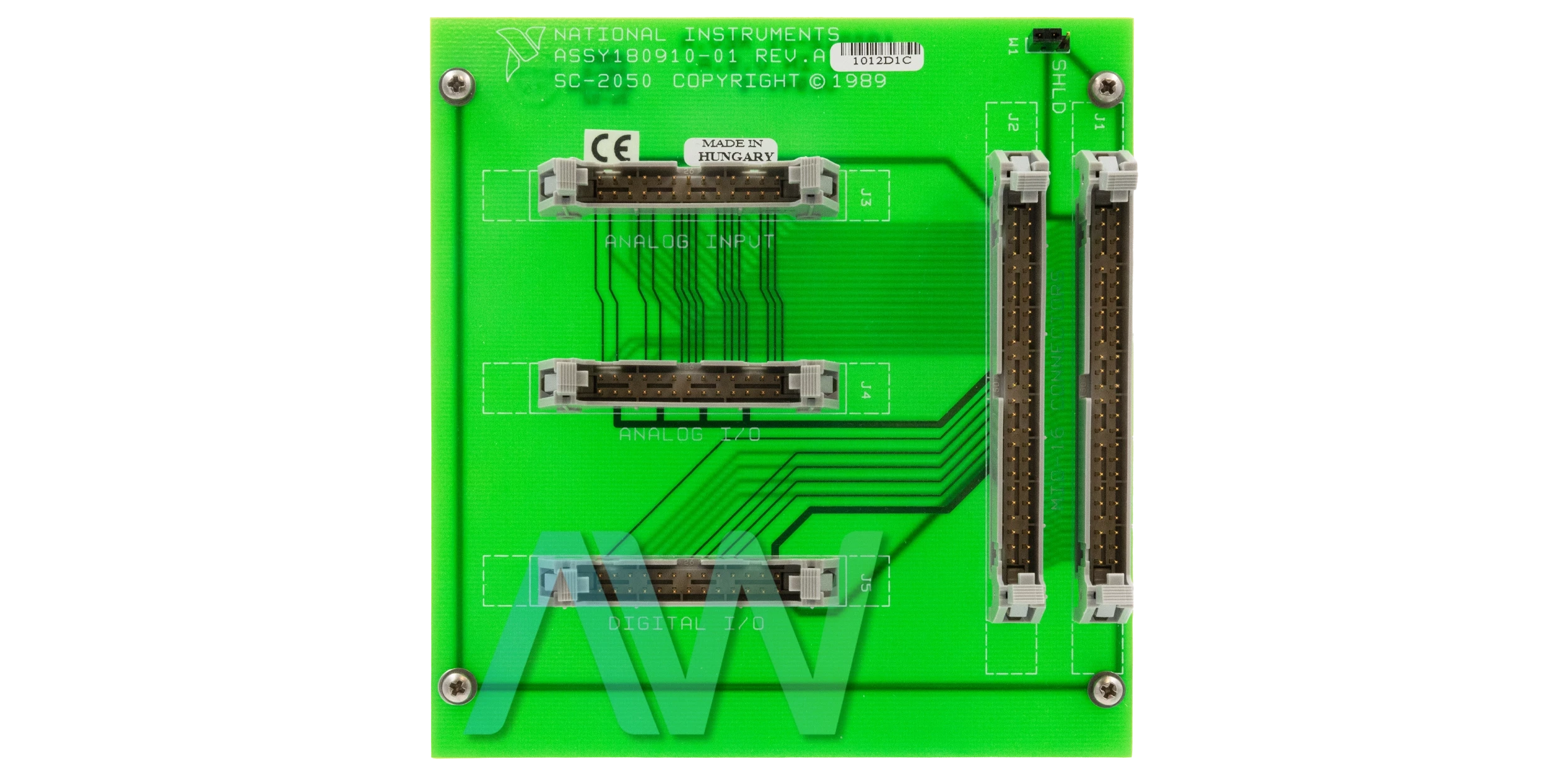

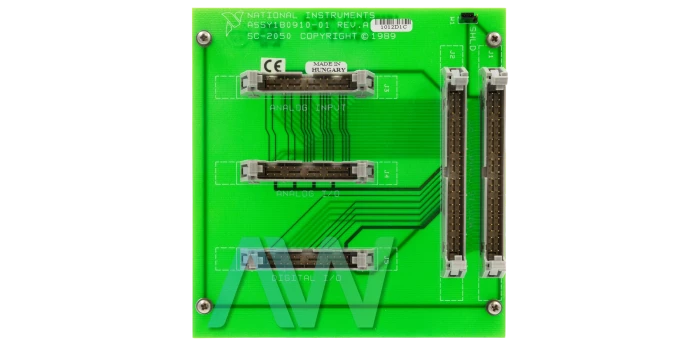

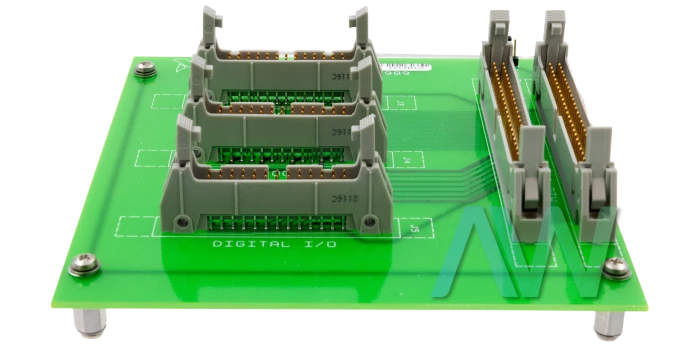

National Instruments 776335-90 Cable Adapter
National Instruments part number 776335-90 is an identifying part number for the SC-2050, a Cable Adapter with two 50-pin Male I/O Connectors and three 26-Pin Male I/O Connectors. The NI 776335-90 is an ideal solution for designing a data acquisition system with minimal signal distortion and losses, particularly in scenarios requiring highly precise measurements. This versatile cable adapter can be easily deployed on any surface, due to its metallic standoffs. For additional convenience, a mounting rack is also available for separate purchase.
This module is designed to adapt various data acquisition devices to different conditioning accessories, ensuring seamless integration and optimal performance. This adapter features two 50-pin ribbon cable connectors and three 26-pin ribbon cable connectors. Its analog ports are compatible with 5B Series conditioning modules, which have pin connections. The digital ports are designed to work with 8-channel solid-state relay boards from the SSR Series and digital signal conditioners from the SC-206X Series.
To use the 776335-90, you will need the following components: an SC-2050 adapter, the SC-2050 series user manual, a DAQ device, a computer, and a cable (such as the SH6850 or PSHR 68-50) to connect the 776335-90 board to the DAQ device. This cable adapter is compatible with a wide range of data acquisition and signal conditioning devices. Using a cable adapter helps prevent signal loss and maintains signal quality. Designed for E Series connectors, this model allows for the conversion of E connector signals to standard pin connections, resulting in significantly improved performance.
National Instruments has announced Obsolete Status for the 776335-90, however, it is still available for purchase with Apex Waves.
| Model | 776335-90 |
|---|---|
| Model Name | SC-2050 |
| Part Type | Cable Adapter |
| Series | SC-205X Series |
| Compatible Devices | E Series |
| 50-pin Male I/O Connectors | 2 |
| 26-pin Male I/O Connectors | 3 |
| Operating Temperature | 0° to 70° C |
| Storage Temperature | –55° to 150°C |
| Dimensions | 5.2 x 4.9 x 1.9 in |
