National Instruments 783597-01 CompactDAQ Chassis

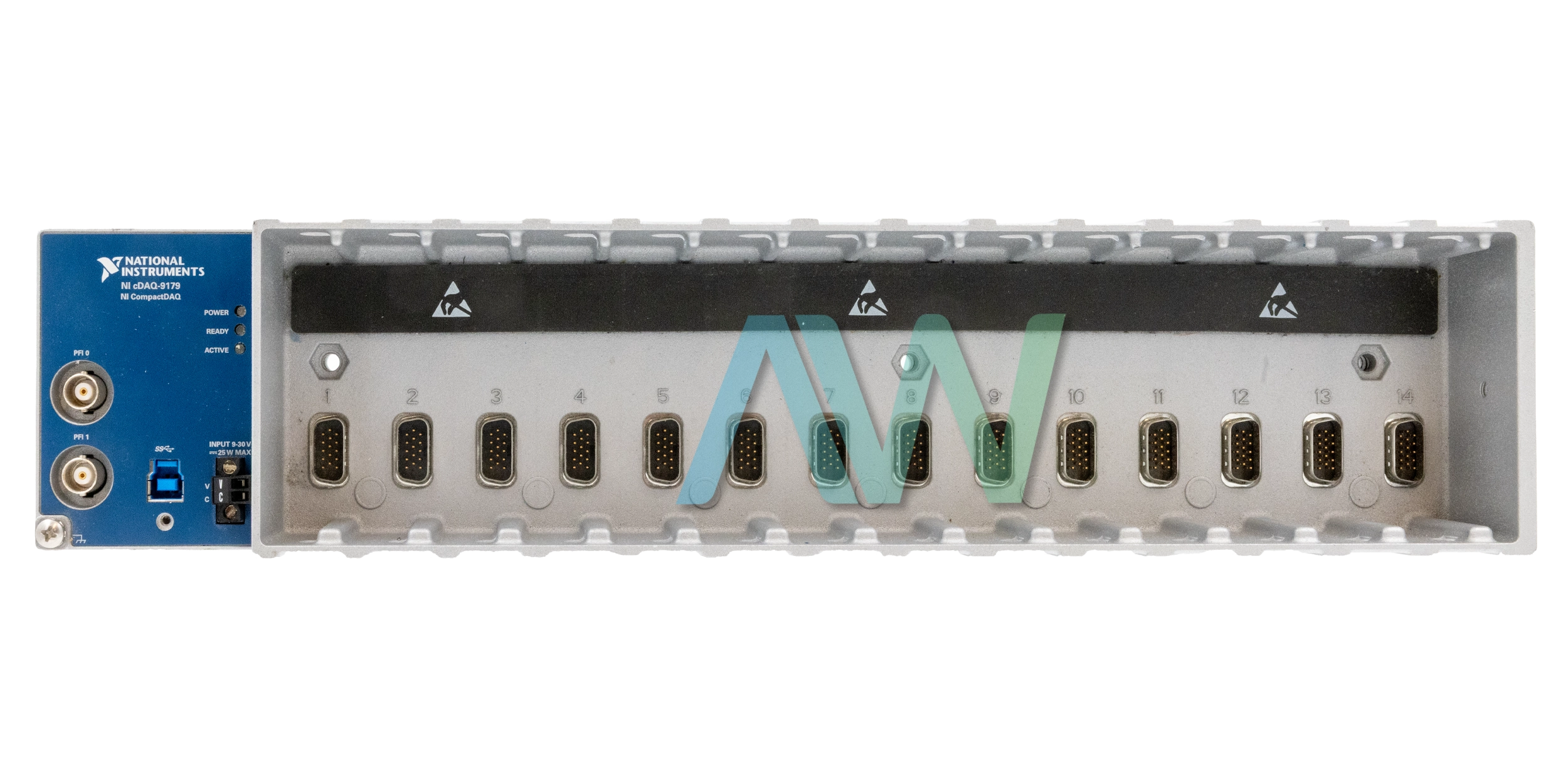

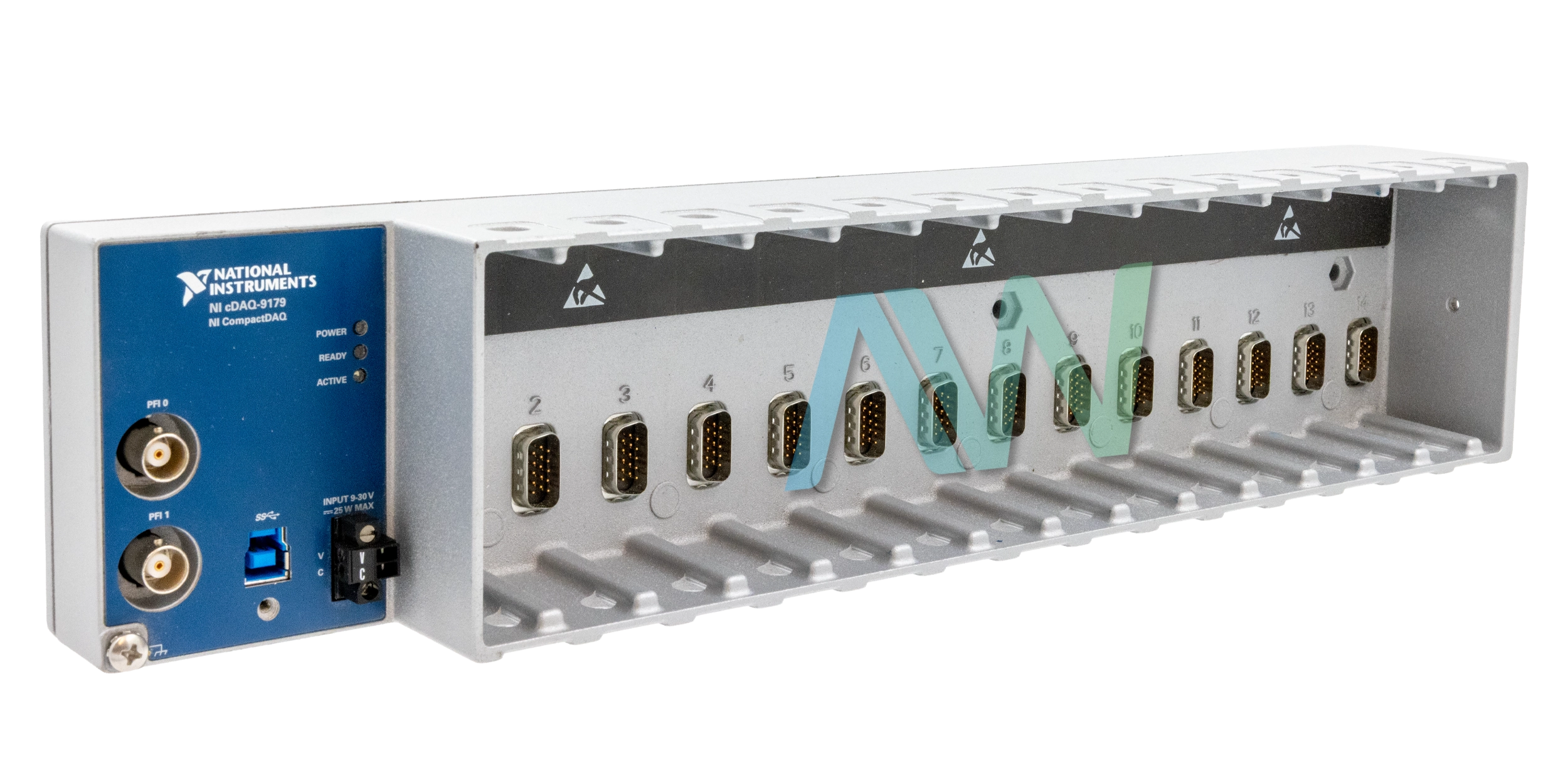

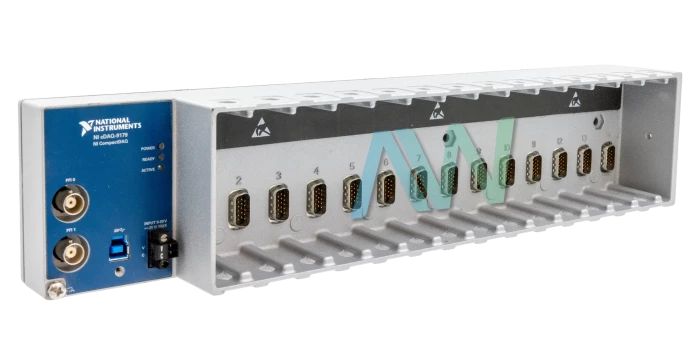

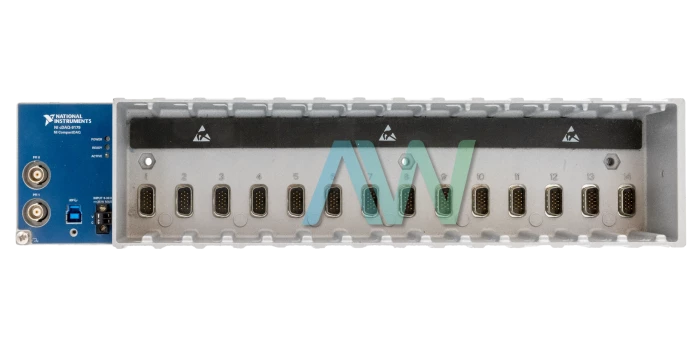

National Instruments part number 783597-01 from is the identifying part number for the cDAQ-9179 CompactDAQ Chassis. This cDAQ Chassis comprises 127 samples per slot Input FIFO size and maximum sample rate are determined by the C Series module. Its timing accuracy is 50 ppm and a timing resolution of 12.5 ns. Similarly, the analog output channels support both onboard regenerations and Non-regeneration with a maximum update rate of 1.6 MS per second on multichannels. Its output FIFO size for the onboard regeneration is 8,191 samples while for the non-regeneration it is 127 samples per slot.

The 783597-01 chassis has digital waveform characteristics including waveform acquisition and waveform generation. It offers digital output sample clock frequency of 0 MHz to 10 MHz and supports both streaming to application memory and finite sampling modes. It also features 4 counter/timers with a 32-bit resolution and the counter measurement ability of edge counting, pulse, semi-period, period, two-edge separation, and pulse width. The 783597-01's internal base clock frequency ranges from 80 MHz, 20 MHz, and 100 kHz with a base clock accuracy of 50 ppm.

The power requirements for this CompactDAQ Chassis are 9 V to 30 V with a maximum power consumption of 25 W. Moreover, it features a power input connector system 2 positions 3.5 mm pitch mini-combicon screw terminal with screw flanges. The power input mating connectors that conform with are Sauro CTF02BV8, Phoenix Contact 1714977, or equivalent.

Physically, this 783597-01 chassis has dimensions of 406.3 mm × 88.1 mm × 64.0 mm (15.99 in. x 3.47 in. × 2.52 in.) and weighs 1.46 kg (51.7 oz). It consists of USB securement of type Jackscrew with a torque of 0.41 Nm. For ambient temperature rating, it requires to be operated at a suitable temperature of -20 to 55 degrees Celsius with a storage temperature of -40 to 85 degrees Celsius. Its operating relative humidity is 10% to 90% RH, noncondensing, and storage relative humidity is 5% to 95% RH, noncondensing. In terms of external protection, it is IP40 rated that prevents entry of insects, and protection from tools and wires.
