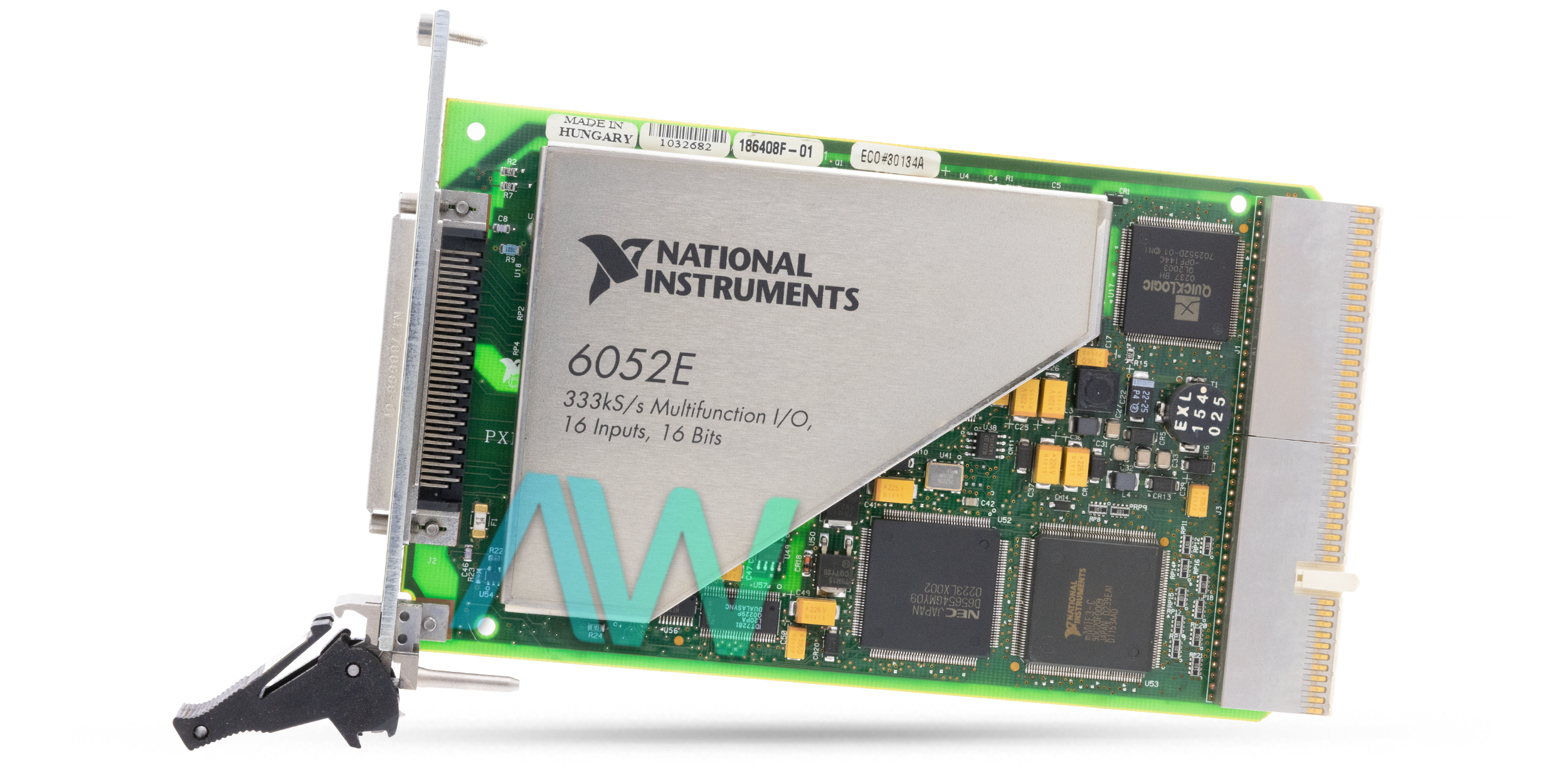

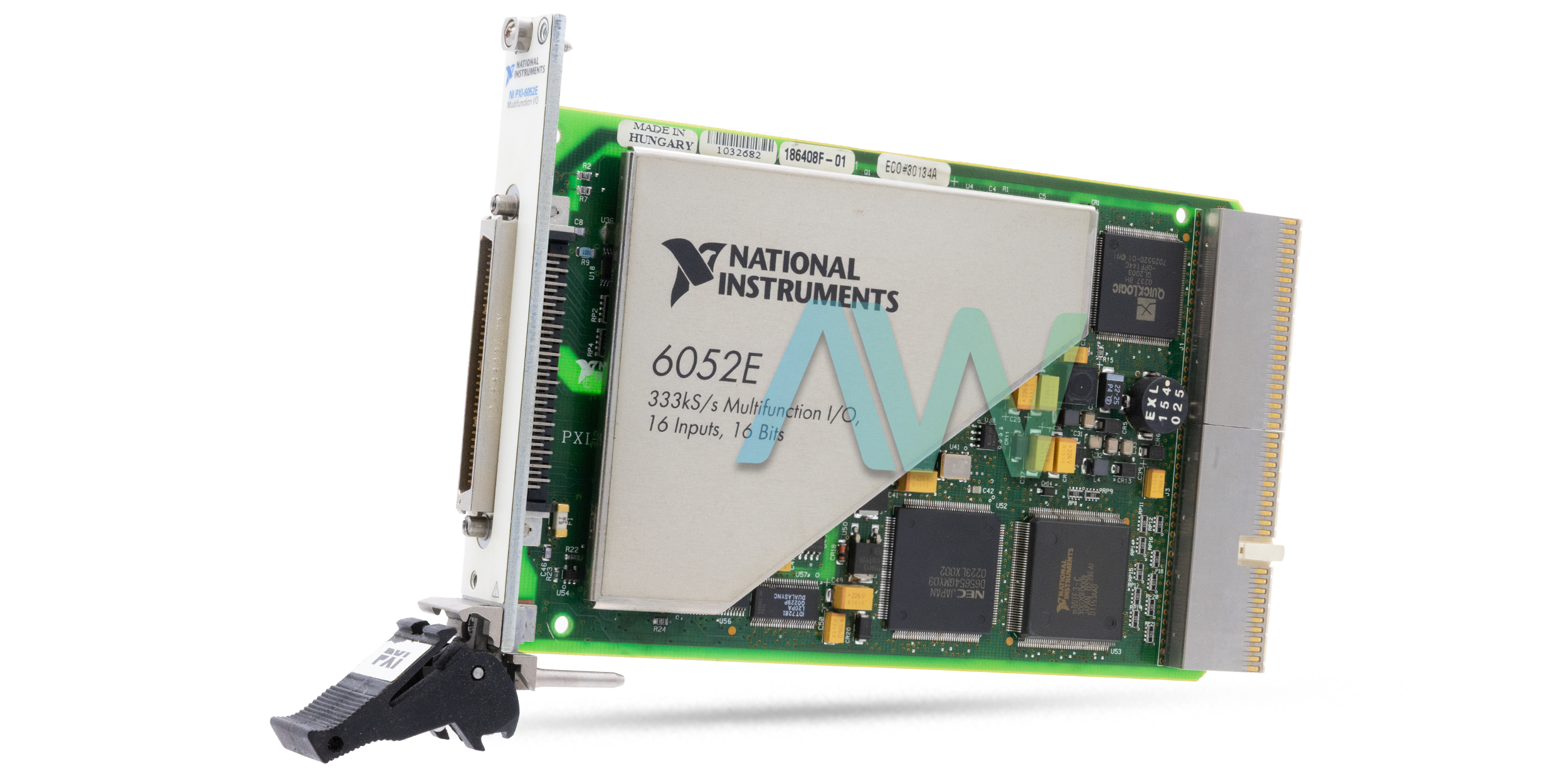

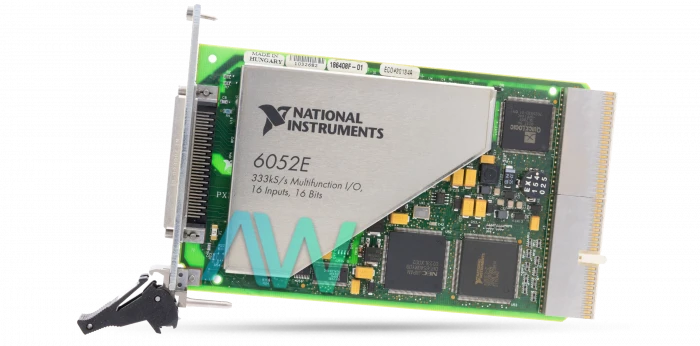

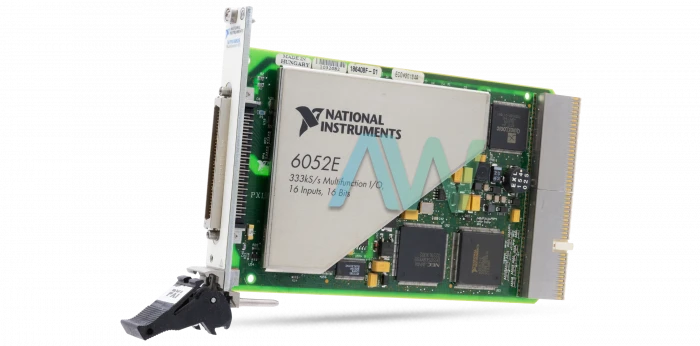

National Instruments PXI-6052E Multifunction DAQ
The National Instruments PXI-6052E (Part Number: 777962-01) is a 16-Channel, 16-Bit Resolution Multifunction DAQ, which is a member of the full-featured E Series. This single-slot PXI module features two Analog Outputs, Analog/Digital Triggering, eight digital I/O lines, 15 analog input signal ranges, and two 24-bit counters/timers. The NI PXI-6052E offers real-time performance with LabVIEW and is fully compatible with other software programs, such as VI Logger, Measurement Studio, and Visual Basic, C#, and C/C++. This Multifunction DAQ can be configured and programmed with the NI-DAQ 7 driver software. To utilize the NI PXI-6052E, the user needs NI-DAQ, a computer, the DAQ device, and either LabVIEW or Measurement Studio (optional).
The National Instruments PXI-6052E offers 16 single-ended or 8 differential channels (software selectable per channel) and 333 kS/s maximum sampling rate. While operating with 20 V range selected, this model offers ±10 V bipolar input range. However, at 100 mV (the lowest software selectable range) the PXI-6052E provides ±50 mV bipolar input range and 0 to 100 mV unipolar input range. As far as its transferring characteristics are concerned, this model offers ±1.5 (typical) and ±3 (maximum) LSB. This DAQ also comes equipped with one Frequency Scaler.
The resolution of its counter/timers and frequency scalar is 24 bits and 4 bits respectively; they are 5 VTTL/CMOS compatible. The recommended warm-up time for this Multifunction DAQ is 15 minutes. The calibration interval is one year. The NI PXI-6052E comes equipped with a male SCSI-II type, 68-pin I/O connector. This model also supports external input for analog or digital trigger (PFI 0/AI START TRIG) at 10 kΩ, with DC coupling.
PXI-6052E End of Life Status has been announced by National Instruments, but this device will still be available for purchase and repairs by Apex Waves.
| Model | PXI-6052E |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777962-01 |
| Series | E Series |
| Type | Multifunction DAQ |
| Analog Input Channels | 16 SE/8 DI |
| Input Resolution | 16 bits |
| Dimensions | 6.3 x 3.9 in. |
| Calibration Interval | 1 year |
| Warranty | One Year Warranty |
| PXI-6052E Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXI-6052E Frequently Asked Questions
Question: Which type of I/O connector does the NI PXI-6052E have?
Answer: The NI PXI-6052E has a 68-pin male SCSI-II type I/O connector.
Question: Which cable should be used with the PXI-6052E?
Answer: The SH68-68-EP cable is ideal for use with the PXI-6052E.
Question: What is the maximum output rate of the PXI-6052E?
Answer: The maximum output rate of the PXI-6052E is 333 kS/s.
Question: What is the value for the power available at the I/O connector on the NI PXI-6052E?
Answer: The NI PXI-6052E has +4.65 VDC to +5.25 VDC at 1 A power available at the I/O connector.
PXI-6052E PDF Manuals
ARCHIVED E SERIES CALIBRATION FIXTURE INSTALLATION GUIDE.PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED NI DAQ FOR MAC OS RELEASE NOTES.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
DAQ GETTING STARTED GUIDE FOR PXI PXI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
DAQ MULTIFUNCTION I O MIO AND SIMULTANEOUS MULTIFUNCTION I O SMIO DEVICES CALIBRATION PROCEDURE.PDF
GUIDE D_INITIATION DAQ POUR PXI PXI EXPRESS.PDF
MULTIFUNCTION IO PRODUCT FLYER.PDF
NI 6052E FAMILY SPECIFICATIONS.PDF
NI 60XX 60XXE PINOUT LABEL FOR THE SCB 68.PDF
NI 60XX 60XXE PINOUT LABEL FOR THE SCB 68A.PDF
