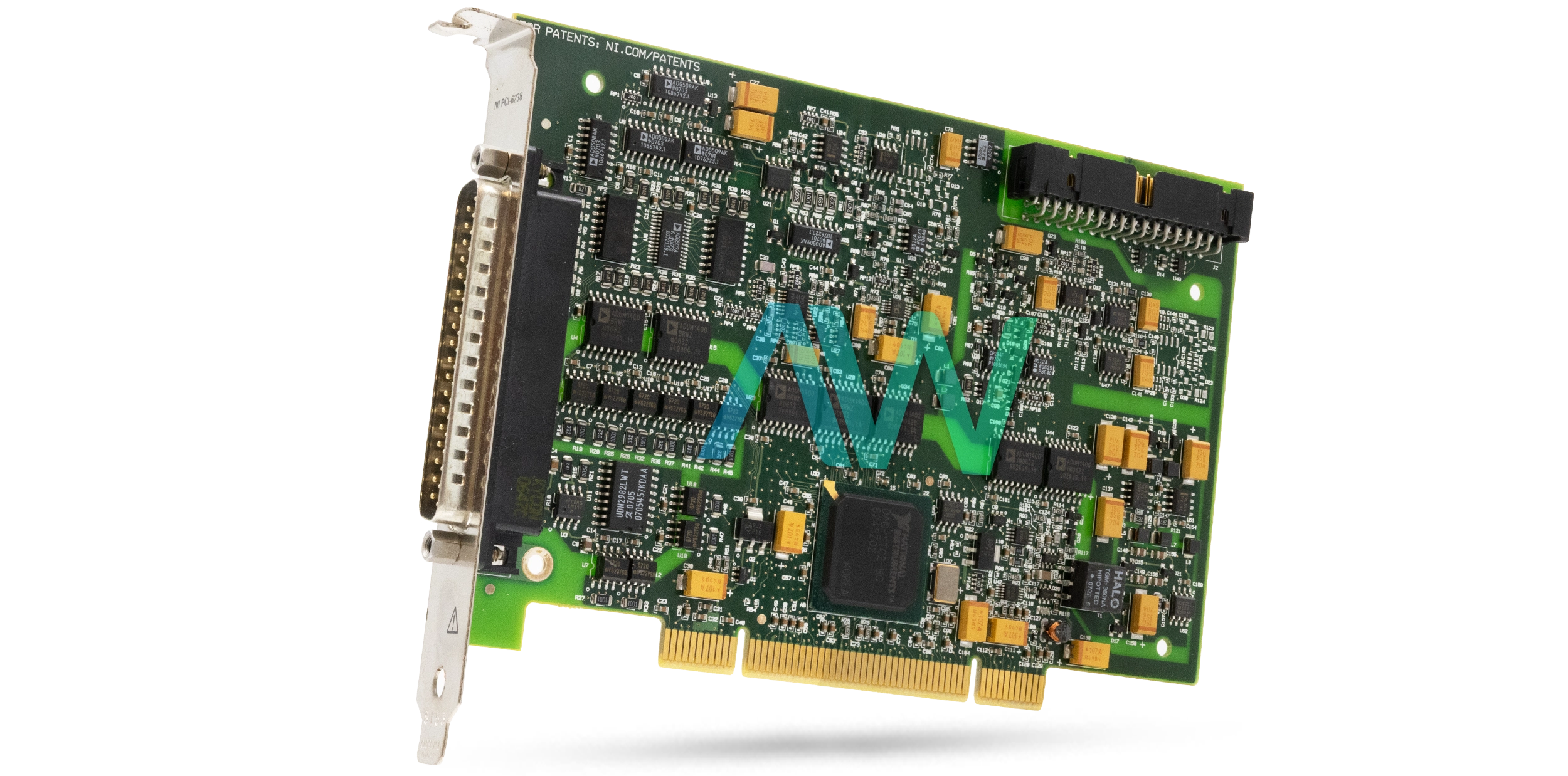

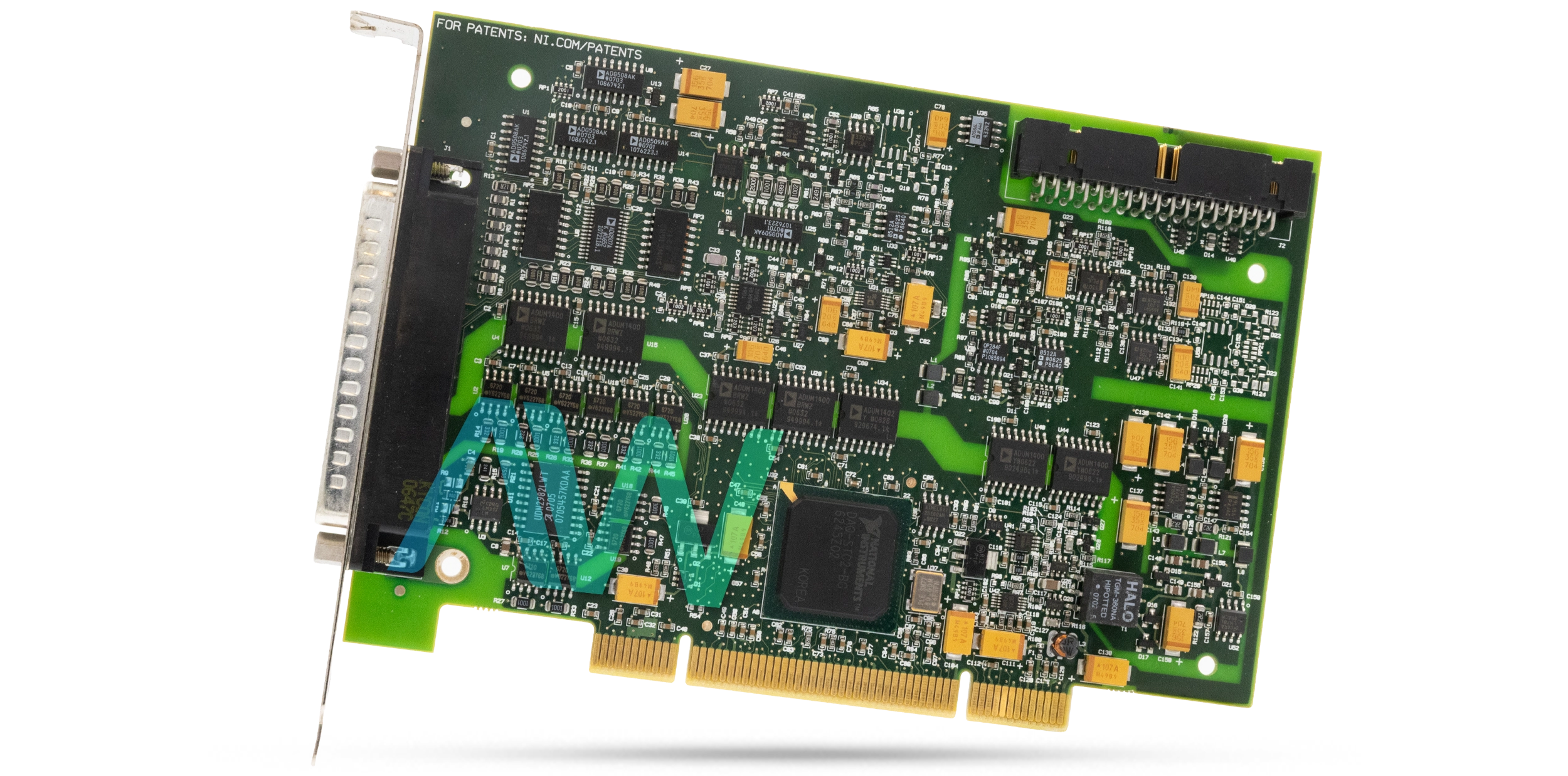

PCI-6238 National Instruments Multifunction DAQ | Apex Waves | Image PCI-6238 National Instruments Multifunction DAQ | Apex Waves | ImagePCI-6238PCI-6238 | Legacy, Refurbished and New Surplus

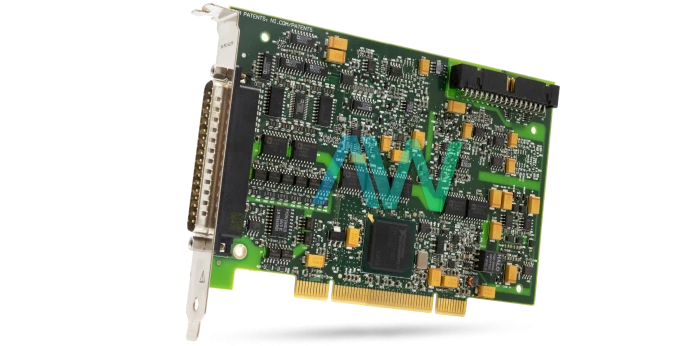

PCI-6238 National Instruments Multifunction DAQ | Apex Waves | Image

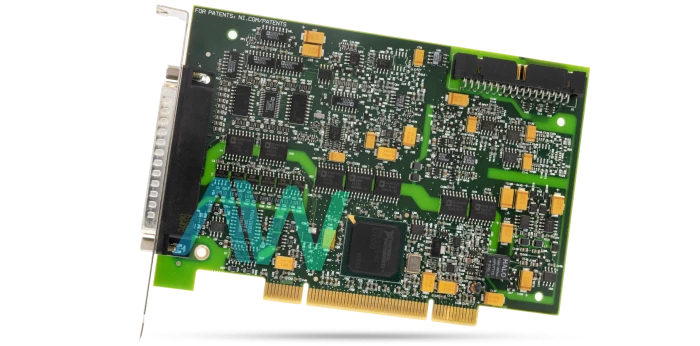

PCI-6238 National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6238 New
PCI-6238 | Legacy, Refurbished and New Surplus

PCI-6238

4.5/5 | 20 ratings

Modular Systems > National Instruments > M Series

Part Number PCI-6238
Manufacturer/Brand National Instruments
Description: PCI-6238, 8 Analog Input, Multifunction DAQ
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PCI-6238 Multifunction DAQ

The PCI-6238 (Part Number: 779623-01) is an advanced, industrial Multifunction DAQ Device from the M Series developed by National Instruments. The industrial M Series devices are ideal for measuring and controlling voltages and process currents from digital and analog sensors, pumps, transducers, motors, relays, valves, and more. Current I/O bank isolation is the main feature of this DAQ device. Isolation makes the PCI-6238 transient free and noise immune. Ground loops are also reduced by this feature.

The NI PCI 6238 Multifunction DAQ has eight differential current input channels. The ADC resolution of the input channels is 16 bits. The sampling rate of the PCI-6238 is up to 250 kS/s. The range of the input current is +20 mA. The maximum impedance of the input channels is 100 Ω. The input channels can bear the overcurrent up to +40 mA. The PCI-6238 also has two analog current output channels. The output channels support dual sampling. The rate of sampling for the output channels is 500 kS/s when a single channel is used. In the case of dual channel sampling, the maximum rate reduces to 450 kS/s per channel. The analog I/O channels of the PCI-6238 have FIFO buffers. The memory of the FIFO buffer at the input terminal is 4095 samples, whereas the output FIFO buffer memory is 8191 samples.

The PCI-6238 Multifunction DAQ also features ten digital PFI channels. Six PFI channels are input channels. The other four channels are used as output channels. The range of the digital input channels is 0 V to 30 V. The input current is up to 9 mA. Two 32-bit counters/timers are also available on the PCI-6238 device.

PCI-6238 Legacy Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPCI-6238
ManufacturerNational Instruments
Part Number779623-01
SeriesM Series
TypeMultifunction DAQ
Analog Input Channels8
Analog Input Resolution16-bit
Dimensions3.8 in. × 6.1 in.
Weight3.6 oz.
WarrantyOne Year Warranty
PCI-6238 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6238 Frequently Asked Questions



Question: Which accessories are required for the PCI-6238?



Answer: The required accessories for the PCI-6238 are the CB-37F-HVD Screw Terminal Connector Block and the 1 m SH37F-37M Shielded Cable.



Question: What is the maximum digital output current drive of the NI PCI 6238?



Answer: The maximum digital output current drive of the NI PCI 6238 is 350 mA.



Question: How often should the PCI 6238 be calibrated?



Answer: The PCI 6238 should be calibrated every year.



Question: What type of I/O connector does the NI PCI-6238 have?



Answer: The NI PCI-6238 has a 37-pin D-SUB I/O connector.
