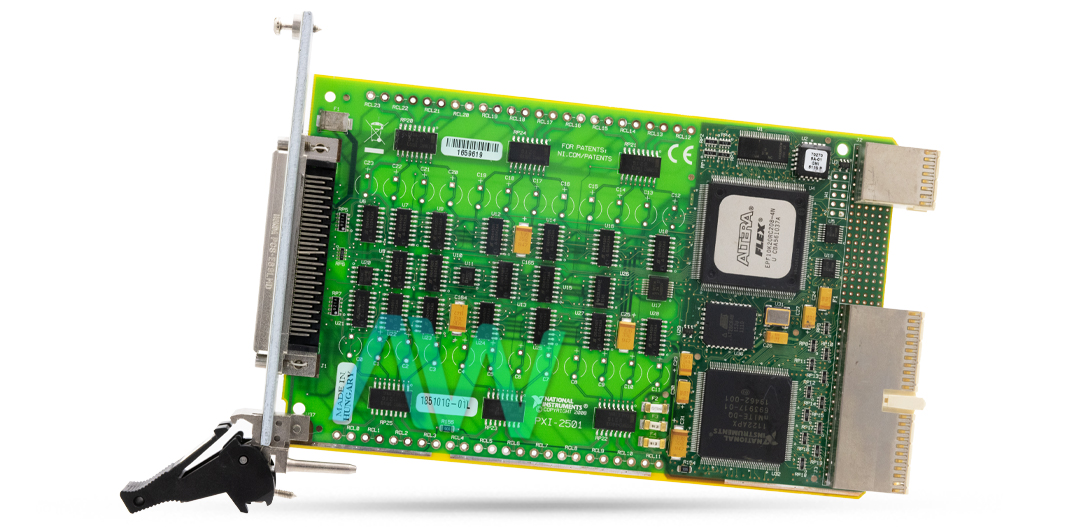

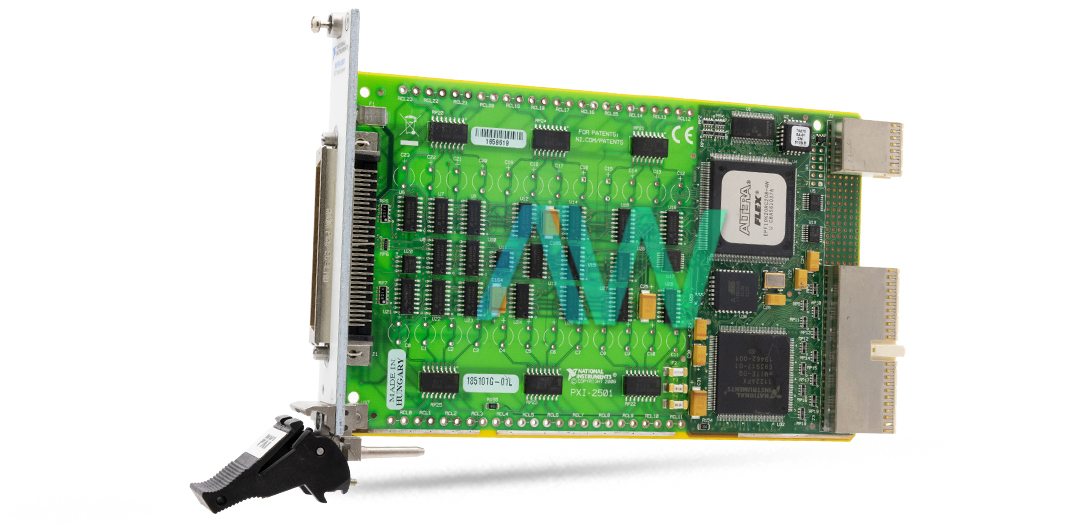

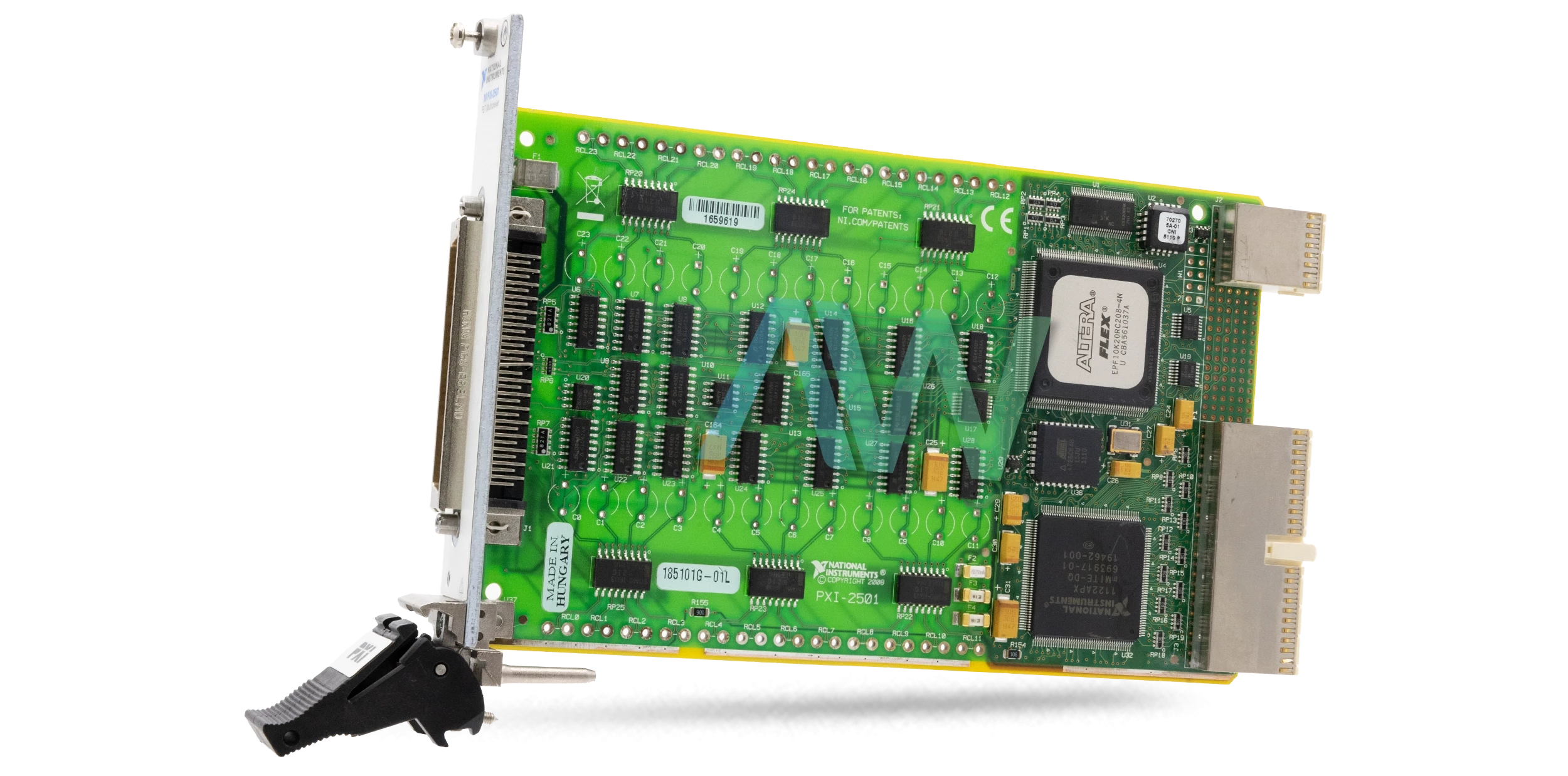

National Instruments 777696-01 GBIB Multiplexer Switch Module
National Instruments part number 777696-01 is an identifying part number for the PXI-2501, a FET PXI Multiplexer Module with a 48 Channels that supports 1, 2 or 4 wire configuration. This PXI switch module can be configured as either a multiplexer or a matrix switch using various terminal block accessories. It is particularly well-suited for applications requiring high-speed scanning of low-voltage signals due to its use of FET switches with minimal settling times.
Additionally, the NI 777696-01 features a 1,024-step scan list for deterministic scanning. With the 777696-01, users can achieve a maximum scan rate of 15,000 channels per second. This module comes with a 68-pin male SCSI connector for handling I/O connections. Its compact design measures 21.6 cm x 2.0 cm x 13.0 cm and weighs approximately 6.1 ounces. In terms of trigger characteristics, the 777696-01 can handle 70 ns PXI trigger lines and 500 ns front panel trigger lines. The module is capable of generating output triggers through <0...7> PXI trigger lines and the front panel, with a pulse width of 1 μs.
Under typical conditions, the four-wire mode of the 777696-01 is used for resistance measurements. Additionally, the device can be configured as a 2-wire, 6 by 4 crosspoint matrix. The 777696-01switch card is offered in a default two-wire configuration mode. In this mode, the CHx+ and COMx+ channels, as well as the CHx– and COMx– channels, are switched together for the corresponding bank. However, the user can also operate this module in one-wire, three-wire, and four-wire configurations.
| Model | 777696-01 |
|---|---|
| Model Name | PXI-2501 |
| Part Type | FET PXI Multiplexer Switch Module |
| Maximum switching voltage (channel-to-ground) | ±10 VDC, 7 VAC |
| Switch Bandwidth | 400 kHz |
| Banks | 1, 2, or 4 |
| I/O Connector | 68-pin male SCSI |
| Channels | 6, 12, 24, 48 |
| Maximum Scan Rate | 15,000 channels/s |
| Relay Type | FET Switch |
