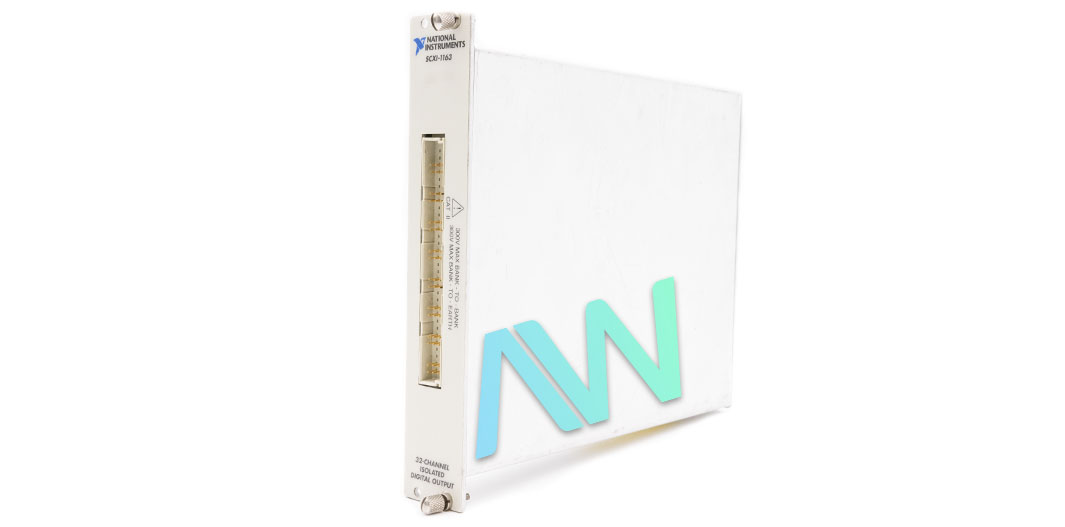

National Instruments SCXI-1163 Digital I/O Module

The NI SCXI-1163 (Part Number: 776572-63) is an isolated Digital Output Module. There are 32 channels available on this module, which are organized into eight isolated banks with four output lines each. The SCXI-1163 has the capability to interface to field digital logic signals, removing ground-loop issues and segregating the host computer from harmful voltages. This Digital I/O Module can be controlled via the SCXIbus. Thus, it can be integrated with ease into existing SCXI systems and does not require more DAQ instruments or cabling. This module can additionally function in parallel mode if it is cabled straight to a plug-in DIO instrument.

When the NI SCXI 1163 Digital I/O Module is in multiplexed mode, the digital output lines or relays are controlled by digital lines on the DAQ instrument. A bit set to logic high creates a logic high at the related output line. If the National Instruments SCXI-1163 module is in multiplexed mode, updates are sent to the module by the controlling DAQ instrument via the SCXIbus. NI-DAQ 7 allows the user to update all lines at 600 updates per second. A single update links to all 32 lines. Additionally, there is a parallel interface to the back signal connector, which is meant for parallel mode. During parallel mode, update rates are based on propagation delays for the module and on the highest update rate of the DIO instrument in charge. Furthermore, if the DIO instrument has the feature, strobed updates are also obtainable.

SCXI-1163 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1163
ManufacturerNational Instruments
Part Number776572-63
TypeDigital I/O Module
Channels32
CompatibilityMost TTL and CMOS logic
Supply Voltage (Vcc)+5 V ±0.5 V, provided by user
Power Requirement from Vcc60 mA/bank typical, 80 mA/bank max
Common-mode Isolation250 Vrms between banks, and bank to earth
WarrantyOne Year Warranty
SCXI-1163 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1163 Frequently Asked Questions



Question: How is the SCXI-1163 programmed?


Answer: The SCXI-1163 is programmed serially using the SCXIbus.



Question: Can the SCXI 1163 operate in parallel mode?



Answer: Yes, the SCXI 1163 can operate in parallel mode when it’s directly cabled to a plug-in digital I/O device.



Question: Would the NI SCXI-1163 work as a controller in a laboratory testing environment?



Answer: Yes, the NI SCXI-1163 can be used as a controller in laboratory testing, production testing, and industrial-process monitoring.



Question: How many user-configurable jumpers are available on the SCXI 1163?



Answer: The SCXI 1163 module consists of five user-configurable jumpers and one reserved jumper.
