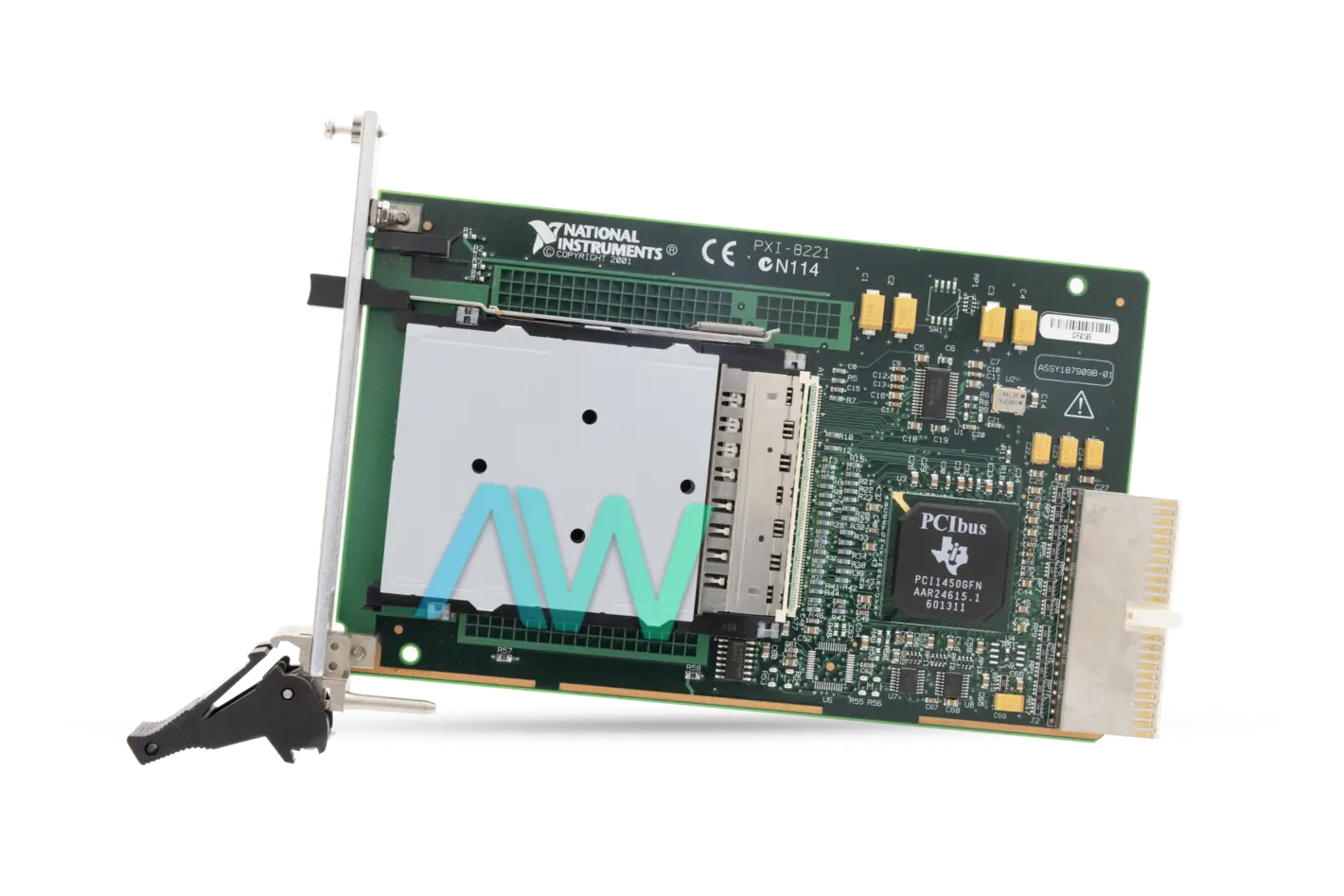

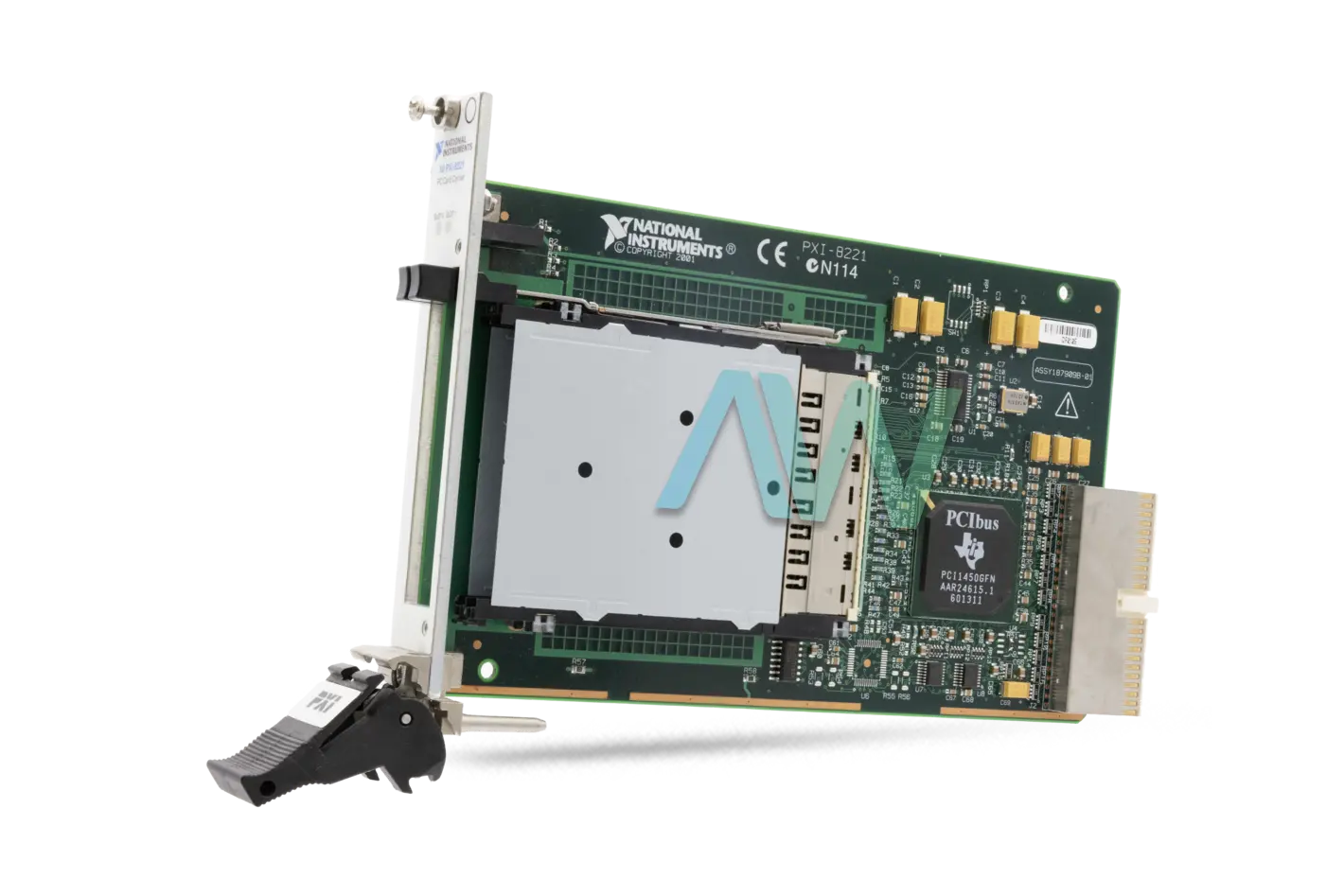

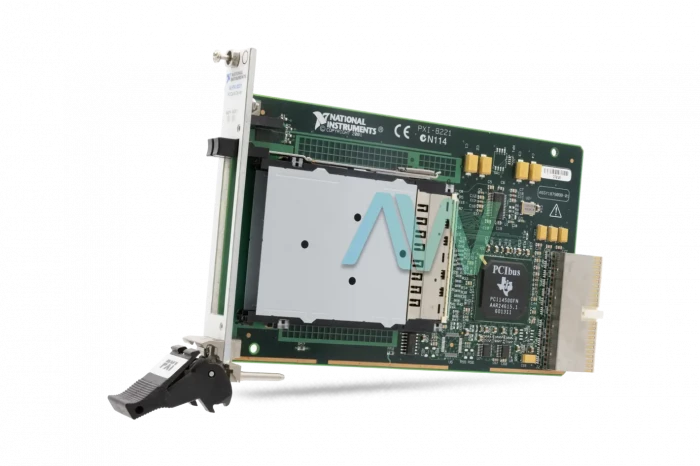

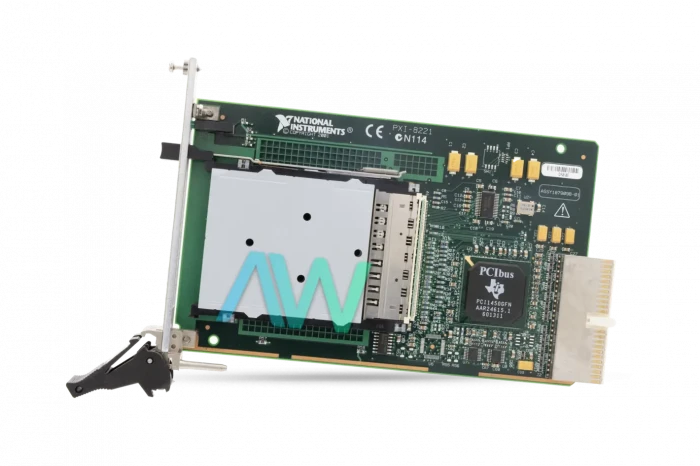

National Instruments PXI-8221 2-Slot PC Card Carrier
The NI PXI-8221 is a two slot PC Card Carrier in a single-slot PXI module, giving the user more alternatives for growing PXI and CompactPCI frameworks. The user can utilize the PXI-8221 to include any usefulness at present accessible in PCMCIA modules. The NI PXI-8221 accepts CardBus modules. The PXI-8221 PC Card connectors can control two completely independent PC Card sockets. They acknowledge either two type I or type II PC Cards or one type III PC Card. The two modules handle 16-bit PCMCIA PC Cards and the PXI-8221 additionally handles 32-bit CardBus PC Cards that can work at the full speed of the PCI bus (132 Mbytes/s). The NI PXI-8221 can also deal with the mixed operation of PCMCIA and CardBus PC Cards.
The National Instruments PXI-8221 PC Card connectors execute a unique component of the PXI and CompactPCI detail called Serialized IRQ for dealing with PCMCIA PC Cards. Serialized IRQ actualizes standard ISA interrupt requests in a PCI-based framework, such as PXI or CompactPCI. This approach gives a mechanism for communicating between ISA legacy components like PCMCIA, with PCI components and controllers.
The PXI-8221 PC Card connectors have two LED status indicators that light up when a PC Card is legitimately introduced and arranged. The modules naturally supply the power required by either 3.3 or 5 V PC Cards. This model is compatible with 3.3 or 5 V PC Cards and has a PCI interface for better execution.
PXI-8221 Obsolete Status has been announced by National Instruments, but the carrier will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8221 |
|---|---|
| Manufacturer | National Instruments |
| Series | PXI Carrier Modules |
| Type | PC Card Carrier |
| Compatible Models | PXI-8110, PXI-8108, PXI-8102, and PXI-8101 Controllers |
| Slots | 2 |
| PC Cards Compatible | 2 type I/II PC cards or 1 type III PC card |
| PXI-8221 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8221:
National Instruments PXI-8221 Frequently Asked Questions
Question: What types of applications can the PXI-8221 be used for?
Answer: The PXI-8221 can be used for modems, video cards, sound cards, PC card functions, bus interfaces, and varios other applications.
Question: What is the operating speed of the PXI-8221?
Answer: The operating speed of the PXI-8221 is 132 MB/s.
Question: What type of interface does the PXI-8221 have?
Answer: The PXI-8221 has a PCI interface for enhanced performance.
Question: What type of power does the NI PXI-8221 supply to the PC cards installed?
Answer: The NI PXI-8221 can supply 3.3 V or 5 V power, depending on the type of PC cards installed.
