NI PXIe Controllers

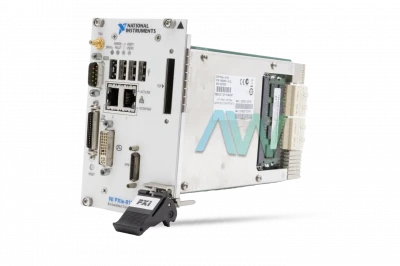

NI PXIe controllers provide the computing and communication capabilities that turn a PXI Express chassis into an automated test system. Embedded models place the processor, memory, storage, and peripheral connections inside the chassis, eliminating the need for a separate host computer. They run measurement applications, process acquired data, and manage instrument communication across the backplane. Applications include electronics validation, aerospace test, RF analysis, and production testing where several instruments must operate within one coordinated system.

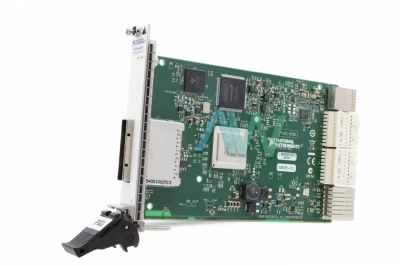

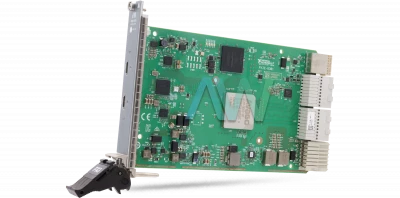

Remote control provides an alternative system architecture. An MXI-Express interface such as the PXIe-8381 connects the chassis to an external computer through matching host hardware and cabling. Instead of running applications inside the chassis, this arrangement uses the external computer’s processor, memory, and installed test software.

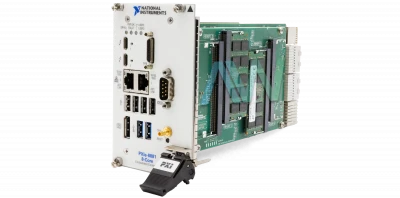

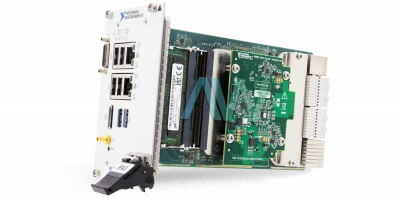

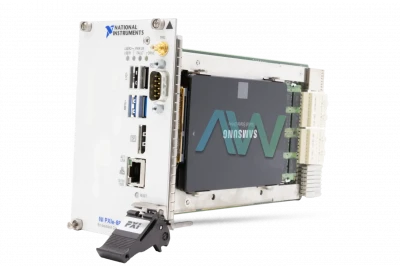

The PXIe embedded controller lineup spans multiple performance levels and hardware generations. The PXIe-8840 is available in dual-core and quad-core versions, making configuration identification important when maintaining an existing installation. The PXIe-8842 combines a six-core Intel Core i5 processor with up to 8 GB/s controller bandwidth. The PXIe-8861 uses a quad-core Intel Xeon processor, while the PXIe-8862 provides an eight-core Intel Core i7; both offer up to 16 GB/s. For heavier computational workloads, PXIe-8881 configurations include four, eight, or eighteen Xeon cores and up to 24 GB/s.

Ordering numbers identify differences that model names alone cannot resolve. For example, PXIe-8842 part number 788816-01 specifies a Windows 11 IoT LTSC configuration, while 787882-33 identifies an NI Linux Real-Time configuration. PXIe-8862 part number 788817-01 is another Windows 11 IoT LTSC option. Confirm memory, storage, GPIB availability, security hardware, and operating system against the exact ordering number before purchasing.

Chassis compatibility deserves equal attention. PXIe controllers require a compatible PXI Express system slot and cannot replace conventional PXI controllers in a PXI-only chassis. Available controller space, power, cooling, and PCI Express connectivity all influence suitability. The PXIe-8881 specifically requires a chassis supporting 82 W slot cooling, such as the PXIe-1092 or PXIe-1095. Advertised controller bandwidth is not a guaranteed sustained recording rate; chassis links, instrument traffic, processing, and storage can limit practical throughput.

Software selection should follow the complete system configuration. Compatible Windows installations support application environments such as LabVIEW and TestStand, while supported NI Linux Real-Time configurations serve deterministic applications. PXI Platform Services supports chassis identification and trigger routing, but individual instruments still require their appropriate drivers. Check the controller, operating system, application version, and every installed module together rather than assuming a newer computer automatically supports older hardware.

For replacement planning, document the existing controller’s full part number, software image, peripheral connections, and test requirements. Apex Waves helps customers source NI hardware and evaluate repair or replacement options for legacy systems. Matching the configuration can reduce migration work while preserving the measurement hardware already installed.
