NI PXI Ethernet Interface Modules

NI PXI Ethernet Interface Modules expand network connectivity within modular test systems, allowing a PXI controller to communicate with Ethernet instruments, networked devices, and external computers. Rather than adding analog measurement channels, these modules provide communication ports for transferring data and coordinating equipment. They are useful when a controller needs additional network connections or when instrument traffic requires a dedicated interface separate from general office networking.

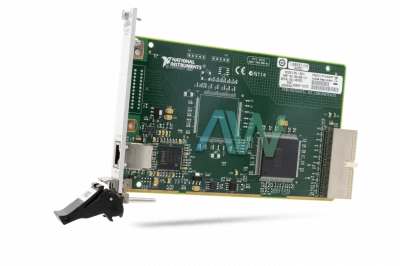

The NI PXI-8231, part number 781752-01, provides one Gigabit Ethernet port with link rates up to 1,000 Mbit/s. It also supports 10BASE-T and 100BASE-TX networks and includes automatic cable polarity detection. This compatibility supports established systems containing both older Ethernet equipment and Gigabit devices. Actual application throughput depends on network conditions, controller resources, drivers, and the connected instrument, rather than the advertised link rate alone.

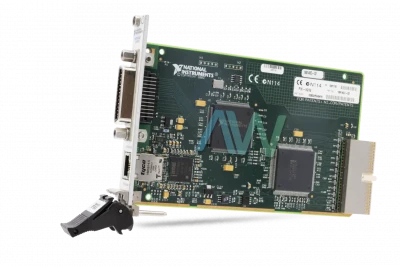

The NI PXI-8232, part number 781753-01, combines Gigabit Ethernet and an IEEE 488 GPIB controller in one PXI slot. Although NI classifies it as a GPIB instrument control module, its Ethernet connection makes it relevant to mixed-interface test racks. Engineers can retain GPIB instruments while adding Ethernet communication without dedicating separate chassis slots to each interface. GPIB operation uses NI-488.2 software; Ethernet networking requires the appropriate network adapter driver.

For systems requiring additional ports, the related NI PXIe-8245, part number 787313-01, offers four RJ45 10/100/1000BASE-T connections in one PXI Express slot. It is not mechanically interchangeable with a module installed in a conventional PXI-only slot. Before selecting any replacement, confirm chassis slot compatibility, controller support, operating system requirements, and available drivers. Similar product names do not guarantee equivalent installation or software behavior.

Software configuration also differs from ordinary measurement modules. In Windows, Ethernet interfaces are checked under Network adapters in Device Manager rather than assumed to appear under Devices and Interfaces in NI Measurement & Automation Explorer. On supported real-time systems, additional ports are configured through the controller's Network Settings in MAX. Verify adapter detection, enable the required interface, and confirm addressing before troubleshooting application communication.

Selected interfaces can also serve specialized industrial applications. NI documents PXI-8231 and PXI-8232 support for EtherCAT master configurations with compatible real-time PXI controllers and NI-Industrial Communications for EtherCAT software. This capability depends on the supported hardware and software combination; installing an Ethernet module alone does not create a deterministic control network.

For legacy system maintenance, record the original model, complete part number, chassis, controller, and software versions before ordering. Document IP addresses and connected devices to simplify installation, verification, and future maintenance work. Share these details with Apex Waves when requesting a replacement or evaluating alternatives. Matching the interface to the existing architecture helps avoid unnecessary changes to validated test equipment and application software.
