NI PXI Modules

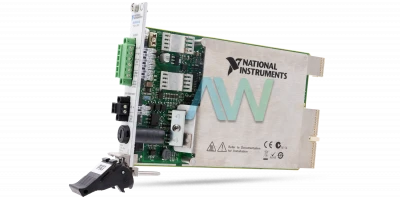

NI PXI modules are modular instruments that bring measurement, signal generation, switching, and control into a shared test platform. PXI stands for PCI eXtensions for Instrumentation. Instead of assigning each function to a separate benchtop instrument, engineers install compatible modules in a chassis and manage them through an embedded controller or a connected host computer. This approach supports configurable systems for laboratory research, electronics validation, manufacturing test, and long-term equipment maintenance.

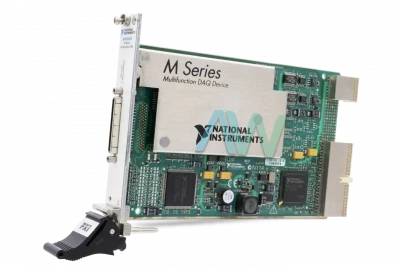

The NI PXI portfolio includes several specialized product families. M Series multifunction data acquisition modules, including the PXI-6221, combine analog inputs, analog outputs, digital lines, and counters. The PXI-6221, ordering part number 779629-01, provides 16 analog inputs with 16-bit resolution and an aggregate sampling rate of 250 kS/s, plus two analog outputs and 24 digital I/O lines. S Series devices such as the PXI-6133 provide simultaneous sampling, making them useful when measurements across multiple channels must preserve their timing relationships.

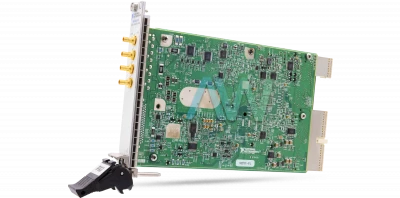

Dedicated instruments address tasks that require different measurement capabilities. The PXI-5122 oscilloscope provides two channels, 14-bit resolution, a 100 MS/s maximum sampling rate, and 100 MHz analog bandwidth. Ordering part number 778756-01 identifies one available memory configuration. The PXI-5412 arbitrary waveform generator supplies programmable test signals, while the PXI-4071 FlexDMM supports precision electrical measurements with up to 7½-digit resolution. For automated connection management, the PXI-2569, part number 778572-69, provides 100 independent single-pole, single-throw relays rated for switching currents up to 1 A, subject to its voltage and power limits.

System compatibility involves more than selecting a measurement function. Traditional PXI modules use PCI communication, whereas PXI Express modules use PCI Express. Hybrid-compatible PXI modules can operate in designated hybrid slots of suitable PXI Express chassis, but standard PXI and PXIe slots are not universally interchangeable. Verify the module revision, connector arrangement, slot type, chassis power budget, cooling capacity, and required accessories before ordering.

Software selection also follows the instrument category. NI-DAQmx supports compatible data acquisition hardware; NI-SCOPE, NI-FGEN, NI-DMM, and NI-SWITCH serve oscilloscopes, waveform generators, digital multimeters, and switches, respectively. Driver versions must match the hardware, operating system, and development environment. Backplane clocks and triggers can coordinate supported instruments, although synchronization still requires appropriate routing and configuration.

For replacement projects, begin with the installed model and complete ordering number rather than assuming similar names indicate equivalent hardware. Also compare input ranges, isolation, bandwidth, channel count, and accuracy; these specifications determine whether a replacement can reproduce the measurements your existing application requires. Share your chassis, controller, software versions, connector requirements, and calibration needs with Apex Waves when requesting a quote. These details help identify suitable NI PXI modules while preserving established test procedures and reducing avoidable integration work.
