How to Create an RF Signal Test Setup with NI Vector Signal Generators

Legacy test equipment

In order to produce intricate signal waveforms for RF signal testing, vector signal generators, or VSGs, are extremely useful instruments. Because they produce accurate signals for processing, they are essential to the testing and validation of radiofrequency systems.

In this article, we will teach you how to create a dependable RF signal test setup using National Instruments (NI) Vector Signal Generators (VSGs). Let’s dive into the steps that are necessary to set up and perform reliable RF signal testing!

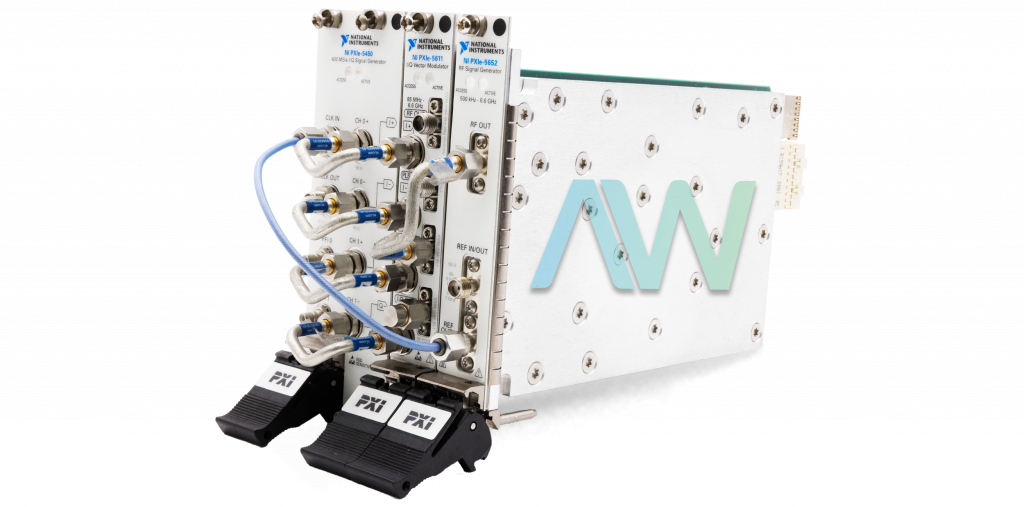

What are Vector Signal Generators?

Vector signal generators are highly precise in producing both digital and analog signals. They are crucial for testing different radio frequency (RF) systems and parts, including transceivers, transmitters, and receivers. VSGs are flexible instruments for RF testing since they can produce a broad variety of modulation types.

Key NI Models

A variety of VSGs are available from National Instruments to satisfy various RF testing requirements. Several well-known NI Vector Signal Generators include:

NI PXIe-5644R: This model integrates a vector signal generator and analyzer, offering up to 6 GHz frequency coverage and 80 MHz bandwidth.

Find the PXIe-5644R in Stock Here

NI PXIe-5645R: Similar to the 5644R but includes an additional IF input, providing more flexibility in signal generation and analysis.

Find the PXIe-5645R in Stock Here

NI PXIe-5646R: An advanced version with up to 200 MHz bandwidth, suitable for more demanding RF applications.

Find the PXIe-5646R in Stock Here

Apex Waves can help you find the Vector Signal Generator you’re searching for, in addition to our wide selection of legacy test equipment! See what’s in stock or contact us to receive a quote.

Features and Capabilities


NI Vector Signal Generators are exceptional tools for RF testing applications because of their many features such as broad frequency range, which extends to 6 GHz. This makes them perfect for a range of radio frequency applications, from sophisticated radar systems to simple communication systems. High bandwidth capabilities are another key feature of these generators. The NI PXIe-5646R, for example, has a bandwidth of up to 200 MHz. Wideband signals can be produced thanks to this high bandwidth, which is necessary for the demands of contemporary RF testing.

In addition, amplitude modulation (AM), frequency modulation (FM), phase modulation (PM), and complex digital modulations are among the modulation types that NI Vector Signal Generators handle. These generators’ adaptable modulation capabilities guarantee that a variety of RF systems and components can be tested and validated. Moreover, NI VSGs easily interface with LabVIEW and other NI software and products. By offering a complete RF signal production and analysis solution, this integration improves their overall testing capability.

Essential Components for an RF Signal Test Setup

To build a competent RF signal test equipment, you need more than just a vector signal generator. Several key components work together to ensure reliable and accurate testing. Here, we’ll go over the components you’ll need to assemble a comprehensive RF test setup.

Signal Generators: The focal point of your test setup will be the signal generator. NI Vector Signal Generators such as the NI PXIe-5644R, NI PXIe-5645R, and NI PXIe-5646R are excellent for generating precise RF signals. These generators’ wide frequency ranges, large bandwidths, and flexible modulation options make them suitable for a variety of radio frequency applications.

Spectrum Analyzers: For the purpose of monitoring and examining the RF signals that your VSG generates, spectrum analyzers are essential. They assist you in seeing the signals’ frequency spectrum and confirming that they adhere to the necessary parameters. High-performance spectrum analyzers from NI are available, such as the NI PXIe-5663, which has outstanding sensitivity and a frequency range of up to 6.6 GHz.

Antennas and Probes: Accurate RF signal transmission and reception depend on the selection of antennas and probes. These parts make sure that the signals your VSG generates are successfully sent to the device under test (DUT) and that the signals you receive are precisely recorded for further examination.

Cables and Connectors: For your test setup to minimize signal loss and maintain signal integrity, high-quality cables and connectors are essential. Utilizing dependable connectors and low-loss, shielded RF cables are crucial for maintaining strong, undistorted signals as they move between components.

Additional Equipment

It may be required to use extra equipment like switches, attenuators, and RF amplifiers, depending on your specific testing requirements. Switches can assist in managing many signal channels in complex installations, attenuators can lower signal power to prevent overload, and RF amplifiers can increase weak signals.

Preparing Your Equipment

To guarantee an accurate outcome, it is important to make sure your equipment is ready before starting any RF signal testing. Begin by carefully inspecting each and every one of your parts, including the spectrum analyzer, antennas, probes, NI Vector Signal Generator, and any other devices like amplifiers and attenuators. Ensure all connections are tight and free of corrosion, and look for any obvious wear or damage.

And the next crucial step in this process is calibration. It’s important to calibrate your NI Vector Signal Generator and other equipment to make sure it’s working within its parameters and producing accurate measurements. When calibrating, adhere to the manufacturer’s instructions and, if available, utilize calibrated reference standards. Maintaining the accuracy and dependability of your RF test system requires routine calibration.

Checking for safety is an essential component of getting your equipment ready. Make sure that every component is grounded correctly to avoid electrical risks and to lessen interference and noise. Make sure there are no outside influences affecting your testing environment that could skew your results. In order to avoid overheating and any damage, you should also confirm that your equipment is working within safe temperature ranges.

Your equipment’s calibration, inspection, and safety checks lay the groundwork for an accurate and successful RF signal testing procedure. By preparing ahead of time, you can steer clear of typical traps and guarantee repeatable and dependable test findings.

Conducting the RF Test

Now that your setup and equipment is ready, it’s time to do the RF test. First, set up your NI Vector Signal Generator to produce the intended RF signal. Assign the modulation, amplitude, and frequency parameters in accordance with the specifications of your test. Make sure that these configurations correspond to the requirements of the application or device under test (DUT) that you are using.

Use the proper cables and connectors to connect the signal generator to the DUT after it has been configured. Verify that every connection is tight to avoid interference or signal loss. Incorporate extra equipment, such as amplifiers or attenuators, into your setup as required, adhering to the manufacturer’s instructions.

Next, measure and examine the resulting RF signals using a spectrum analyzer. To accurately capture the signals, first adjust the spectrum analyzer to the appropriate frequency range and resolution bandwidth. Examine the signal on the spectrum analyzer’s display and record important details including frequency, signal intensity, and any noise or distortion that may be present.

As you take the measures, be sure to carefully record the outcomes. Keep track of the spectrum analyzer measurements, the signal generator settings, and any other pertinent information. For the purpose of assessing the test findings and future reference, this step is essential.

Examine all connections and settings as a first step in troubleshooting if you have any problems, such as unexpected signal behavior or interference. As needed, make adjustments to get the desired signal quality. This could entail adjusting the test setup, strengthening the grounding and shielding, or adjusting the signal generator’s characteristics.

Analyzing Results and Troubleshooting

To make sure your measurements are accurate and reliable, you must study the findings of the RF test after you’ve completed it. Review the collected data first, paying close attention to important factors including signal strength, frequency stability, and any noise or distortion that may have been noticed. To find out if your device under test (DUT) satisfies the requirements, compare these results to the predicted performance criteria.

Use software tools like NI LabVIEW, which may assist you in visualizing and interpreting the measurements, to evaluate the acquired data effectively. The RF toolkits in LabVIEW include a range of data analysis operations, such as signal demodulation, spectrum analysis, and performance metrics computation. These tools can help you find any anomalies and offer greater insights into the behavior of your RF signals.

Frequency drift, spurious signals, or unanticipated signal attenuation are common problems that can occur during radiofrequency testing. It is crucial to use a methodical troubleshooting strategy when dealing with such problems. Make that all of the connections are secure and that the cables and connectors are operating as intended. Look for any wear or damage that could compromise the integrity of the signal.

Examine your NI Vector Signal Generator and spectrum analyzer’s configuration settings if the connections are still intact. Make sure that the modulation, amplitude, and frequency are all set appropriately and consistently. Discrepancies in the test results can occasionally be fixed by making small changes to these settings.

Inaccurate measurements can also result from interference from other sources. Make sure all of your equipment is correctly grounded and that your testing area is protected from RF waves. Investing in high-grade, insulated cables can also reduce interference and increase the precision of measurements.

If signal abnormalities continue, you may want to consider using extra diagnostic instruments, such as network analyzers or time-domain reflectometers. These tools can assist your test setup in pinpointing specific areas of risk or failure. By carefully reviewing the results and systematically fixing any issues, you can ensure the precision and reliability of your RF signal testing.
