NI USB DAQ Devices

NI USB DAQ devices turn a compatible computer into a measurement workstation without requiring an internal expansion card or PXI chassis. These National Instruments data acquisition products support laboratory experiments, portable troubleshooting, production testing, and equipment monitoring. Depending on the model, a single device can acquire analog signals, generate voltage outputs, read digital states, and count pulses.

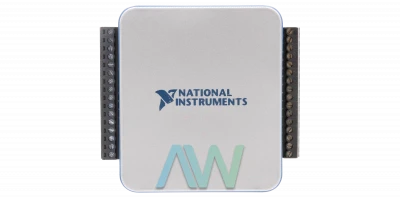

The range includes entry-level USB multifunction devices, M Series, X Series, and mioDAQ hardware. The USB-6001, part number 782604-01, provides eight single-ended or four differential analog inputs with 14-bit resolution and a maximum aggregate sampling rate of 20 kS/s. Its two analog outputs and digital I/O make it useful for straightforward measurement and educational applications. Related USB-6002 and USB-6003 models offer 16-bit analog input resolution.

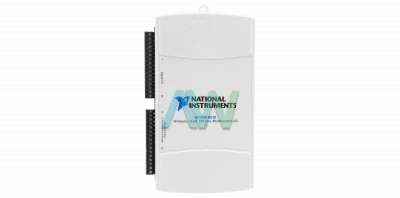

For established M Series applications, the USB-6210, part number 779675-01, combines 16-bit analog input with digital input, digital output, and two counters. It supports up to 16 single-ended or eight differential inputs at 250 kS/s aggregate. Importantly, the USB-6210 does not provide analog outputs, so replacement decisions should consider required functions rather than model numbering alone.

X Series expands timing, triggering, and multifunction capabilities. The USB-6363 offers 32 single-ended or 16 differential analog inputs, four analog outputs, and four counters. Its maximum single-channel input rate is 2 MS/s, while multichannel acquisition is limited to 1 MS/s aggregate. The USB-6366 instead provides eight simultaneous analog inputs at up to 2 MS/s per channel, making channel alignment a key selection consideration.

The mioDAQ USB-6451 introduces 20-bit analog input conversion, simultaneous sampling, and USB Type-C connectivity. Specialized devices also address particular sensors: the USB-4431 integrates IEPE conditioning for sound and vibration measurements using compatible accelerometers and microphones.

Successful selection starts with signal requirements. Check input ranges, grounding, isolation, channel configuration, and required conditioning. Thermocouples and strain gauges may need additional conditioning rather than direct connection to general-purpose voltage inputs. Also verify power requirements: some USB DAQ devices draw power from the computer, while others require an external supply.

Use model-specific manuals to confirm pin assignments and wiring limits before installation. For legacy replacements, preserving a proven hardware and software combination can help reduce unnecessary application changes, but equivalent-looking devices are not automatically interchangeable.

NI-DAQmx supports acquisition workflows in LabVIEW, Python, and C/C++, subject to device and software compatibility. On supported Windows systems, NI Measurement & Automation Explorer helps configure hardware and test signals before application development.

Apex Waves helps teams source NI USB DAQ hardware for replacement, expansion, and ongoing system support. Confirm the exact part number, connector style, accessories, driver requirements, and calibration needs when requesting a quote.
